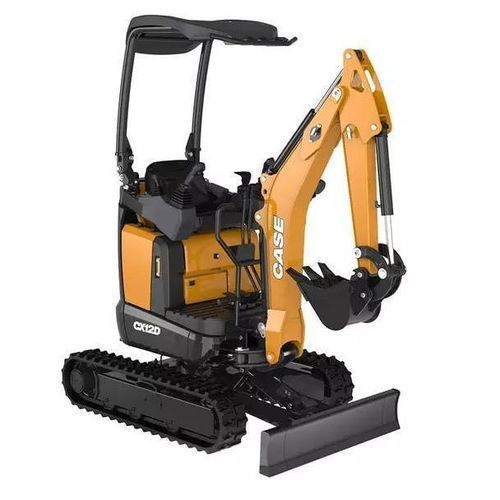

Mini excavator CX12D

crawlerstandarddiesel

Overview
The CASE CX12D is a 1‑ton class mini excavator from the D‑Series designed for compact worksites and rental fleets. It has an operating weight of 1305 kg and is powered by a KUBOTA D722 - STAGE 5 engine delivering up to 11.8 hp. Its compact footprint, extendable undercarriage and 1860 mm digging depth make it suitable for urban construction, utilities and landscaping tasks.

Quick specifications

• Operating weight: 1305 kg (with Roll-bar)
• Digging depth: 1860 mm
• Engine: KUBOTA D722 - STAGE 5, up to 11.8 hp

Standard Equipment

• Tiltable Roll-bar (ROPS/TOPS)
• Vinyl seat with mechanical suspension (canopy)
• Standard arm
• Boom lift cylinder and dozer blade cylinder protection
• Standard counterweight
• Servo-assisted hydraulic joysticks with electro-hydraulic proportional controls
• Electro-hydraulic proportional swing control
• 1st auxiliary (AUX1) circuit with electro-hydraulic proportional control
• Mechanical diverter between single effect and double effect AUX1
• 2-speed travel with automatic shift down (from 2nd to 1st gear when higher traction is required) and shift-up
• Rubber tracks
• Standard dozer blade
• Extendable undercarriage
• Operator manual
• Ignition key (unlocks machine)
• Standard LED working lights (boom)
• Battery disconnect switch
• Gear pump
• Standard hydraulic oil and lubricants

Optional Equipment

• Roll-bar plastic cover (FOPS Level 1)
• Anti-theft
• Travel alarm
• Long arm
• Additional counterweight
• 2nd auxiliary (AUX2) circuit with electro-hydraulic proportional control
• Extra LED working lights (roof)
• Rotating beacon
• CASE Sitewatch and SiteConnect
• Bio hydraulic oil and lubricants
• Mechanical quick couplers
• Buckets

Compatible attachments

• AR quick coupler (mechanical or hydraulic)
• Buckets (wide range for various couplers)
• CR quick coupler (mechanical or hydraulic)
• CS quick coupler (mechanical or hydraulic)

Technical specifications

• Model: CX12D
• Series: D‑Series Mini‑Excavators
• Operating weight: 1305 kg (with Roll-bar)
• Digging depth: 1860 mm
• Engine: KUBOTA D722 - STAGE 5, up to 11.8 hp
• Undercarriage: Extendable undercarriage; rubber tracks
• Travel: 2‑speed travel with automatic shift down and shift‑up
• Hydraulics: 1st auxiliary (AUX1) circuit with electro-hydraulic proportional control; electro-hydraulic proportional swing control
• Standard safety: Tiltable Roll-bar (ROPS/TOPS)
