Medium excavator WX140E
wheeledmulti-functiondiesel

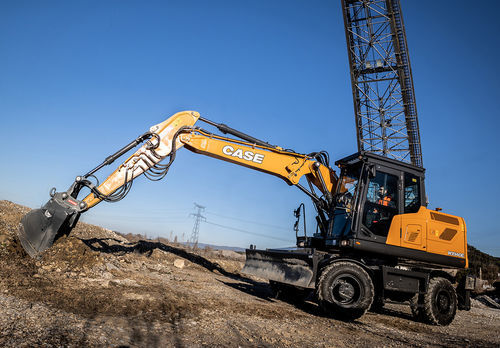

Medium excavator - WX140E - Case Construction - wheeled / multi-function / diesel
Medium excavator - WX140E - Case Construction - wheeled / multi-function / diesel
Medium excavator - WX140E - Case Construction - wheeled / multi-function / diesel - image - 2
Medium excavator - WX140E - Case Construction - wheeled / multi-function / diesel - image - 3
Add to favorites
Compare this product

Characteristics

Product line
medium
Locomotion
wheeled
Type
multi-function
Other characteristics.
diesel
Engine model
CUMMINS
Operating weight

Max.: 15,860 kg
(34,965.3 lb)

Min.: 15,860 kg
(34,965.3 lb)

Engine power

Max.: 127 kW
(172.7 hp)

Min.: 127 kW
(172.7 hp)

Description

Overview
  • WX140E wheeled excavator — operating weight 15,860 kg (15 t), maximum digging force 112 kN, 20 hydraulic tool configurations, 8" multifunction touchscreen with secondary camera display and telescopic steering wheel.


Performance & powertrain
  • Cummins B4.5 diesel engine, 4-cycle turbocharged, charge-air cooled, electronically controlled (Stage V). SCR, DPF, DOC, EGR-free architecture, wastegate turbocharger, high-pressure common rail fuel system, electronic fuel injection.


Fuel economy systems
  • Eco mode, auto idle, one-touch idle, idle shutdown, eco gauge and eco reports to monitor and optimise fuel consumption.


Hydraulics & drive
  • 2-speed 4-wheel drive hydrostatic transmission, auto/manual power boost, auto travel speed change and creep speed, 3 selectable power modes plus user mode, 3 work operation modes, multifunction high-flow circuit with electrical proportional control, ISO/SAE pattern controls, automatic swing brake and overload warning device.


Operator station
  • ROPS and FOPS OPG level 2 protection, suspended adjustable heated air-suspension seat, tiltable joystick console, A/C with automatic control, USB radio with MP3 and Bluetooth, 8" color touchscreen monitor with Android mirroring, secondary camera display, anti-theft start code system, multiple LED work lights.


Attachments & undercarriage
  • Mono boom 4.6 m or 2-piece boom 4.7 m, standard arm 2.45 m (other arms optional), attachment types storable in display, front oscillating and rear rigid heavy-duty axles, tubed twin tires 9.00-20 PR14 or 10.00-20 PR14, rear blade and lashing points.


Telematics & safety
  • 3 years advanced SiteWatch remote monitoring subscription included, rear view safety camera, lifting eyes for counterweight, boom and arm safety valves. Optional CASE Maximum View 360° monitor and rear radar detection for enhanced awareness.


Optional equipment
  • Engine cyclonic pre-filter, clamshell and low-flow hydraulic circuits, fine swing control, joystick steering, ride control, travel speed limiter, Panolin bio oil, heavier counterweight (mono versions), smart key, cab roof LED beacon, solid tires, rear stabilizers and trailer hitch preparation.


Technical specifications
  • Operating weight (2PB): 15,860 kg
  • Net power: 127 kW
  • Digging force: up to 112 kN
  • Hydraulic tool configurations: 20
  • Monitor: 8" touchscreen color monitor with secondary camera display (Android mirroring)
  • Telescopic steering wheel
  • Engine: Cummins B4.5, turbocharged, charge-air cooled, electronic controlled diesel (Stage V)
