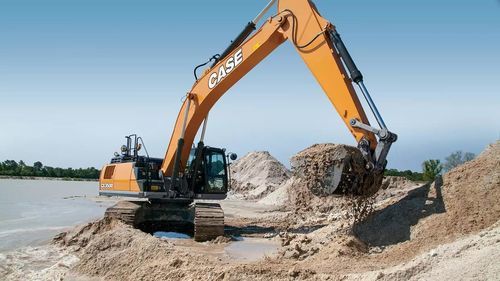

Large excavator CX350D

crawlerfrontcompact

Overview
The CASE CX350D is a mid-size hydraulic excavator designed for high-production earthmoving and precise site finishing. Featuring a Stage V Isuzu powerplant and the CASE Intelligent Hydraulic System, the CX350D balances digging force, cycle speed and fuel efficiency for a wide range of construction and quarry applications.

Quick specifications

• Weight: 35.8 t
• Rated power: 210 kW / 282 hp
• Engine: Isuzu 6-cylinder turbocharged, EU Stage V

Standard equipment - ENGINE

• Isuzu 6-cylinder turbocharged diesel
• EU Stage V aftertreatment (SCR, DOC, DPD)
• Cooled Exhaust Gas Recirculation (CEGR)
• VGT turbocharger
• High-pressure common rail fuel system
• Electronic fuel injection
• Dual-stage fuel filtration
• Dual element air filter and remote oil filter
• 500-hour engine oil change interval
• 24-Volt electrical system with battery disconnect
• External fuel and AdBlue gauges
• Fuel cooler and fuel filter restriction indicator

Standard equipment - FUEL ECONOMY SYSTEMS

• Auto-idle and one-touch idle
• Auto-idle shut-down
• Torque control
• Boom Economy Control (BEC)
• Swing Relief Control (SWC)
• Spool Stroke Control (SSC)

Standard equipment - HYDRAULICS

• Electronically controlled hydraulic pumps
• Auto power boost
• Auto travel speed change
• Selectable work modes
• ISO pattern controls
• Pre-set auxiliary pump settings and switch controlled selection
• Auxiliary valve and hydraulic quick coupler provision
• Hydraulic filter restriction indicator and oil cooler
• 5,000-hour hydraulic oil change interval
• 2,000-hour hydraulic filter change interval

Standard equipment - UPPERSTRUCTURE

• Isolation-mounted cab (fluid and spring)
• Handrails and ISO mirrors
• Lifting eyes for counterweight
• Lockable fuel cap, service doors and toolbox
• Rear and side view safety camera

Standard equipment - OPERATOR STATION

• ROPS / FOPS protection (OPG Level II available)
• Pressurized cab with tempered safety glass
• Auto climate control (AC / heat / defrost)
• Air-suspension high-back cloth seat with sliding and adjustable armrests
• Low-effort joysticks and tilting consoles
• Multifunction LED color monitor with 26 languages
• Anti-theft start-code system and on-board diagnostics
• Working lights (boom, upperstructure and cab roof), DAB+ radio

Standard equipment - ATTACHMENTS

• Standard boom 6.45 m (CX350D)
• Arm 3.25 m (CX350D)
• Auxiliary pipe brackets and centralised lube bank
• Attachment cushion valve and safety valves on bucket linkage
• Hydraulic quick coupler provision

Standard equipment - ATTACHMENTS (FOR 2PB)

• 1st boom 3.46 m
• 2nd boom 3.10 m
• Arm 3.25 m

Standard equipment - UNDERCARRIAGE

• 600 mm steel triple grouser shoes
• Sealed link chain and full overlap turntable bearing tub
• Lashing points and double track guide (CX350D, CX370D 2PB)

Optional Equipment - HYDRAULICS

• Low-flow proportional circuit

Optional Equipment - ATTACHMENTS

• Alternative arm lengths: 2.20 / 2.63 / 4.05 m (CX350D)
• HD arm and reinforced options for heavy duty versions

Optional Equipment - OPERATOR STATION

• Front cab guard (OPG level 1 or 2)
• CASE Maximum View Monitor - 270° with additional left camera

Optional Equipment - UPPERSTRUCTURE

• Catwalks (LC models)
• Hydraulic and engine oil sampling ports

Optional Equipment - UNDERCARRIAGE (for all models and versions)

• 700 / 800 / 900 mm steel triple grouser shoes (900 mm for CX350 LC)
• Full or double track guide options per configuration

Compatible attachments (examples)

• Buckets for Direct Fit and G-type quick coupler
• MultiFit quick coupler compatible buckets
• G-type hydraulic quick coupler
• Primary crusher

Technical specifications

• Model: CX350D
• Operating weight: 35.8 t
• Rated power: 210 kW / 282 hp
• Engine: Isuzu 6-cylinder turbocharged diesel, EU Stage V
• Aftertreatment: SCR, DOC, DPD; CEGR; VGT turbocharger
• Fuel & economy features: Auto-idle, One-touch idle, Auto-idle shut-down, Torque control, BEC, SWC, SSC
• Hydraulics: Electronically controlled pumps, Auto power boost, selectable work modes, ISO controls
• Operator station: ROPS/FOPS, pressurized cab, climate control, multifunction LED monitor
• Service intervals: 500-hour engine oil change; 5,000-hour hydraulic oil change; 2,000-hour hydraulic filter change
• Undercarriage: 600 mm triple grouser shoes standard (optional 700/800/900 mm)
