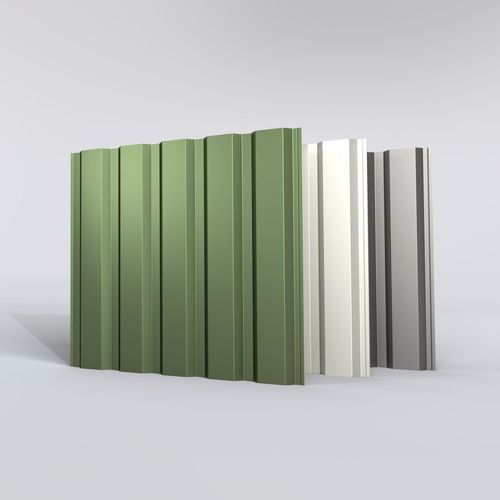

Galvanised steel wall cladding panel JI 35-207-1035

exteriorfor facadepre-painted

Overview
The JI 35-207-1035 is a trapezoidal single-layer steel wall cladding profile intended for exterior façades. It is supplied with a complete range of matching accessories and is manufactured in multiple steel thicknesses and coil-coating options to suit project requirements. Availability of dimples (dimpling) or reinforcements depends on the market (e.g. Belgium: with or without dimples; Netherlands: normally without dimples).

Product family
Box-profile trapezoidal wall cladding sheets

Dimensions (nominal)
Length: Min. 1500.0 mm — Max. 13600.0 mm
Maximum useful width: 1035.0 mm

Thickness & weight (per m²)

• 0.5 mm: 4.63 kg/m²
• 0.6 mm: 5.55 kg/m²
• 0.63 mm: 5.83 kg/m²
• 0.7 mm: 6.48 kg/m²
• 0.75 mm: 6.94 kg/m²
• 0.88 mm: 8.14 kg/m²

Material
Steel S280 GD

Available coating ranges (summary)

• Essential (25 µ) — basic coil coating for general external applications (cladding, roofing, accessories, HVAC units).
• Ultra — enhanced coil coating for severe environments; suitable for profiles and sandwich panels used on roofs and façades.
• Ultra‑X (Ultra 75) — highest-durability coil coating for roofing and cladding; alternative to PVC‑plastisol for improved lifecycle performance.
• HPS 200 Ultra® — premium coil coating developed for very demanding environments with improved corrosion resistance.

Coating colour examples (selection from available RAL & special ranges)

• RAL examples: RAL 1002, RAL 1013, RAL 1015, RAL 1019, RAL 1021, RAL 2001, RAL 3000, RAL 3009, RAL 5002, RAL 5008, RAL 5010, RAL 5011, RAL 5014, RAL 5015, RAL 5017, RAL 6003, RAL 6005, RAL 6009, RAL 6011, RAL 6020, RAL 6021, RAL 7006, RAL 7012, RAL 7015, RAL 7016, RAL 7021, RAL 7022, RAL 7032, RAL 7035, RAL 7037, RAL 7042, RAL 8004, RAL 8011, RAL 8012, RAL 8014, RAL 8019, RAL 8024, RAL 8025, RAL 9001, RAL 9002, RAL 9005, RAL 9006, RAL 9007, RAL 9010, RAL 9016
• Special/textured and wood-structure finishes (examples: Woodstructure, 1102 Rouge Tuile, 4750 Gris Nuage)

Availability & options
Multiple steel thicknesses and coating families are offered to meet project-specific structural and aesthetic requirements. Market-dependent options (dimples/reinforcements) should be confirmed at order stage.

Reference standards & compliance

• Galvanized steel: EN 10346:2015 (tolerances according to EN 10143:2006)
• Coil coating: EN 10169:2022
• Geometry tolerances: EN 508-1:2021
• Structural calculations: EN 1993-1-3:2006

Installation & accessories
Designed for straightforward installation; a full range of compatible flashings, trims and fastening accessories is available to complete façades and ensure proper detailing.

Technical specifications

• Product: JI 35-207-1035 trapezoidal wall cladding
• Product family: JI 35 box-profile series
• Material: Steel S280 GD
• Length range: 1500.0 mm — 13600.0 mm
• Maximum useful width: 1035.0 mm
• Thicknesses & weights: see list above
• Coating options: Essential (25 µ), Ultra, Ultra‑X (Ultra 75), HPS 200 Ultra®
• Market note: dimpling/reinforcement options vary by country (e.g. Belgium vs Netherlands)
• Standards: EN 10346:2015; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
