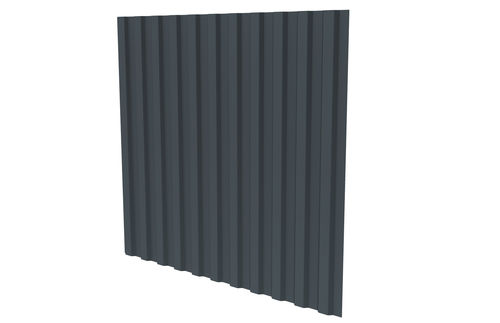

Panel cladding JI 14-100-1000

steelsheet metalgalvanized

Description The JI 14-100-1000 is a ribbed box-profile steel cladding sheet designed for the covering of sliding and swing doors, as well as for fascias and soffits. Its low-profile trapezoidal geometry enables discreet visual integration in architectural façades while keeping a favorable strength-to-weight ratio for easier handling and installation.

Applications

• Cladding for sliding and swing doors
• Fascias, soffits and banding
• Architectural façade panels and decorative elements

Dimensions

• Length: Min. 1000.0 mm / Max. 8000.0 mm
• Width: Max. 1000.0 mm

Thickness & weight

• 0.6 mm: 5.75 kg/m²

Characteristics

• Material: Steel S280 GD
• Product type: Box profile wall cladding sheets
• Model: JI 14-100-1000

Coating options (examples)

• Essential (25 µ): base coil coating for general exterior use
• Ultra / Ultra-X (Ultra 75): enhanced weather resistance for roofs and façades
• HPS 200 Ultra®: high-performance coil coating for aggressive environments

Reference standards
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Tolerance (geometry): EN 508-1:2021
Calculations: EN 1993-1-3:2006

Technical specifications

• Length range: 1000.0 mm — 8000.0 mm
• Max width: 1000.0 mm
• Nominal thickness: 0.6 mm
• Surface mass: 5.75 kg/m² (0.6 mm)
• Material: Steel S280 GD (galvanized)
• Standards: EN 10346:2015; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
