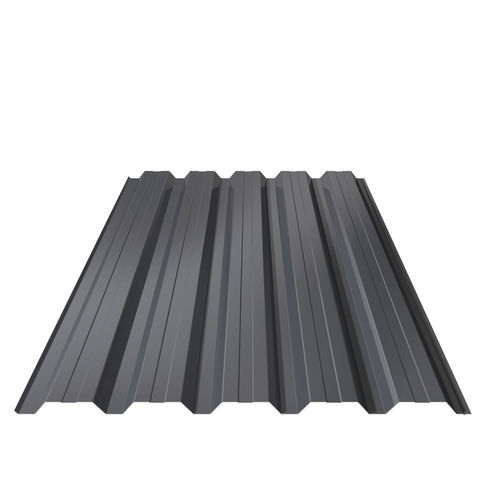

Steel cladding JI 35-207-1035

sheet metalgalvanizedribbed

Overview
The JI 35-207-1035 is a steel trapezoidal (box profile) roofing sheet designed for roofing applications in warehouses, storage facilities, and agricultural, industrial and tertiary buildings. It provides structural strength and long-term performance for roof envelopes. Available with multiple coil-coating systems and a wide colour range to suit functional and aesthetic requirements.

Applications

• Roofing for warehouses and storage facilities
• Agricultural buildings
• Industrial buildings
• Tertiary and commercial buildings

Available finishes / Coatings (overview)
The product is offered with several coating systems. Examples of available coatings and typical colour sets are listed below.

• Essential (25 µ) — basic coil coating for outdoor use; wide RAL range and special/wood-structure colours
• Ultra — reinforced external coating for severe environments; common RAL options for roofs and facades
• Ultra-X (Ultra 75) — highest durability option for roofing and cladding; selected premium shades
• HPS 200 Ultra® — heavy-duty high-performance coating for demanding environments; broad colour range

Dimensions
Length: Min. 1500.0 mm / Max. 13500.0 mm
Width: Max. 1035.0 mm

Thickness & weight

• 0.5 mm: 4.63 kg/m²
• 0.6 mm: 5.55 kg/m²
• 0.7 mm: 6.48 kg/m²

Material & key characteristic

• Material: Steel S280 GD
• Profile type: Trapezoidal / box profile roofing sheet
• Designed for structural strength and on-site adaptability (length options up to maximum)

Reference standards

• Galvanized steel: EN 10346:2015 — tolerances according to EN 10143:2006
• Coil coating: EN 10169:2022
• Tolerance (geometry): EN 508-1:2021
• Structural calculations: EN 1993-1-3:2006

Product features called out on the page

• Structural strength for roofing applications
• Multiple coating systems and extensive RAL colour range
• Suitable for agricultural, industrial, tertiary and warehousing roofs
• Available in several thicknesses and long lengths to suit on-site requirements

Downloads & documentation (available items listed on page)

• Technical data sheet for JI 35-207-1035 (TDS)
• Drawings pack — DWG / DXF / PDF
• Coating technical data sheets (Essential, Ultra, Ultra-X, HPS 200 Ultra®) and related brochures

Technical specifications

• Product name / model: JI 35-207-1035
• Profile type: Box profile (trapezoidal) roofing sheet
• Material: Steel S280 GD
• Length range: Min. 1500 mm — Max. 13500 mm
• Maximum width: 1035 mm
• Available thicknesses & surface weights: 0.5 mm = 4.63 kg/m²; 0.6 mm = 5.55 kg/m²; 0.7 mm = 6.48 kg/m²
• Coating options: Essential (25 µ), Ultra, Ultra-X (Ultra 75), HPS 200 Ultra®
• Applicable standards: EN 10346:2015; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
