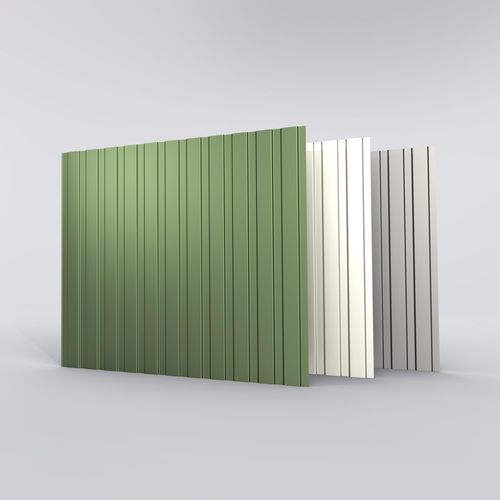

Galvanised steel wall cladding panel JI 10-100-1100

for facadeexterior walltextured

Overview
The JI 10-100-1100 is a trapezoidal steel profile engineered for wall cladding and door covering applications, notably sliding and single doors, fascia and soffit finishes. Its slim, lightweight section facilitates installation while providing a technical exterior finish for industrial and agricultural buildings. Manufactured from hot-dip galvanized steel, it is supplied in multiple lengths, widths and coating systems to suit project requirements.

Applications

• Cladding for sliding and single doors
• Fascia, soffit and trim elements
• Wall cladding and facade finishes for industrial and agricultural buildings
• Secondary finishes within building envelopes

Key features

• Trapezoidal box profile designed for wall and door cladding
• Material: hot-dip galvanized steel (Steel S280–S320 GD)
• Thin, lightweight section for ease of handling and installation
• Available in a range of lengths, widths, thicknesses and coil coating systems

Dimensions
Length: Min. 1500 mm / Max. 8000 mm
Width: Max. 1100 mm

Thickness & mass per unit area
0.5 mm: 4.35 kg/m²
0.6 mm: 5.22 kg/m²
0.63 mm: 5.98 kg/m²
0.7 mm: 6.09 kg/m²
0.75 mm: 7.12 kg/m²

Coating systems / Finishes
The profile is available with several coil coating families adapted to exposure and performance needs. Common options include:

• Essential (25 µ) — basic exterior coil coating for cladding, roofing and accessories
• Ultra — enhanced surface hardness and handling resistance for severe environments
• Ultra-X (Ultra 75) — very durable coating for roofing and cladding, alternative to PVC/plastisol
• HPS 200 Ultra® — high-performance coil coating for aggressive environments

Available colours & options
Multiple RAL and special finishes are available across coating families; textured or smooth surfaces can be supplied according to specifications.

Reference standards

• Galvanized steel: EN 10346:2015 (tolerances per EN 10143:2006)
• Coil coating: EN 10169:2022
• Geometry / tolerances: EN 508-1:2021
• Structural calculations: EN 1993-1-3:2006

Notes

• Select thickness, mass and coating family according to project durability and exposure requirements.
• Confirm exact lengths, tolerances and colour availability with technical documentation for each order.

Technical characteristics

• Model: JI 10-100-1100
• Material: Steel S280–S320 GD (hot-dip galvanized)
• Length range: 1500 mm — 8000 mm
• Max width: 1100 mm
• Thickness / mass: see table above
• Coating systems: Essential (25 µ), Ultra, Ultra-X (Ultra 75), HPS 200 Ultra®
• Standards: EN 10346:2015; EN 10143:2006; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
