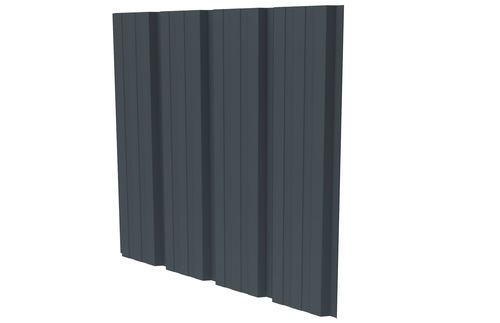

Panel cladding JI 25-267-1070 PERFO

steelgalvanizedperforated

Description
Perforated cladding panels are designed to optimise building ventilation, ensuring continuous air renewal for occupant comfort and structural preservation. By reducing moisture accumulation and limiting condensation, they help extend the service life of the envelope. In addition to ventilation, these profiles can be used as interior acoustic absorbing facings to attenuate noise in industrial or agricultural environments. Standard perforation is 15%.

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 1070.0 mm

Thickness and weight
0.63 mm: 5.1 kg/m²
0.75 mm: 6.07 kg/m²

Material and options
Material: Steel S320 GD
Options: (no specific options stated on the product sheet)

Coatings available (presentation and colors)

• Essential (25 µ): Base coating for exterior use (claddings, roofs and accessories, HVAC units). Example colours listed on the product sheet include: RAL 1002; RAL 1013; RAL 1015; RAL 1019; RAL 1021; RAL 2001; RAL 3000; RAL 3009; RAL 5002; RAL 5008; RAL 5010; RAL 5011; RAL 5014; RAL 5015; RAL 5017; RAL 6003; RAL 6005; RAL 6009; RAL 6011; RAL 6020; RAL 6021; RAL 7006; RAL 7012; RAL 7015; RAL 7016; RAL 7021; RAL 7022; RAL 7032; RAL 7035; RAL 7037; RAL 7042; RAL 8004; RAL 8011; RAL 8012; RAL 8014; RAL 8019; RAL 8024; RAL 8025; RAL 9001; RAL 9002; RAL 9005; RAL 9006; RAL 9007; RAL 9010; RAL 9016; Woodstructure; 1102 Tile Red; 4750 Cloud Grey (and other listed variants).
• Ultra: For exterior use in severe environments: profiles, sandwich panels for roofs and claddings, construction elements (tiles, gutters, etc.). Example colours: RAL 1015; RAL 5008; RAL 7015; RAL 7016; RAL 7021; RAL 7022; RAL 7035; RAL 8012; RAL 9002; RAL 9005; RAL 9006; RAL 9007; RAL 9010; RAL 9016 (and other variants listed).
• Ultra-X: Ultra 75 coating is the most durable coating for roof and cladding. It is the best alternative to PVC-plastisol paints to improve the performance of building envelope systems and contributes to CO2 reduction at project level. Example colours: RAL 7016 (Anthracite); Goosewing Grey; Merlin Grey (and other Ultra-X shades listed).

Uses and performance
Typical uses: building ventilation, aeration, condensation reduction, acoustic absorbing facing for interior walls (noise attenuation in industrial or agricultural settings). Indicated standard perforation: 15%.

Standards
Galvanised steel: NF EN 10346:2015 - tolerances per NF EN 10143:2006 - NF P34-310:2017
Coil coating: NF EN 10169:2022 - NF P34-301:2017
Tolerance: Professional recommendations for cladding RAGE July 2014
Calculations: Tests per NF P 34-503-1:2024 interpreted according to Professional Recs. RAGE 2014 annexes D, E and N for wind Eurocode (NF EN 1991-1-4+NA:2012) and annexes K, E and N for wind NV65 rules modified 2009

Characteristics / technical specifications

• Commercial name: JI 25-267-1070 Creux d'Onde (Perfo plage)
• Material: Steel S320 GD
• Standard perforation: 15%
• Available length: Min. 1500.0 mm / Max. 13600.0 mm
• Maximum width: 1070.0 mm
• Thicknesses and weights: 0.63 mm → 5.1 kg/m²; 0.75 mm → 6.07 kg/m²
• Available coatings: Essential (25 µ), Ultra, Ultra-X (multiple RAL colours and technical finishes depending on coating choice)
• Applications: ventilated cladding, acoustic absorbing interior facing, industrial/agricultural projects requiring ventilation and durability
• Applicable standards and tests: NF EN 10346:2015, NF EN 10169:2022, NF P34-310:2017, NF P 34-503-1:2024 (interpretations and references RAGE / Eurocode / NV65 as applicable)
