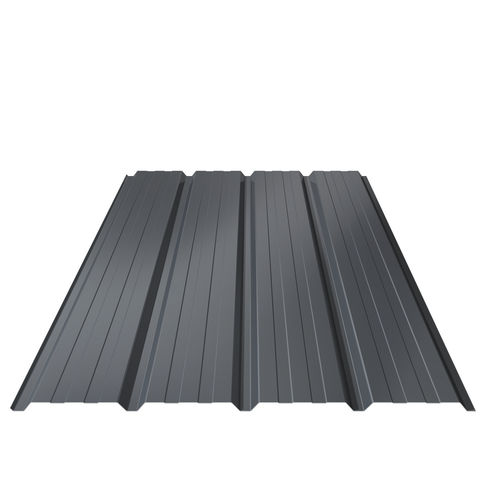

Panel cladding JI 25-267-1070

galvanised steelsheet metalhot-dip galvanised steel

Overview
The JI 25-267-1070 is a trapezoidal steel cladding sheet engineered for agricultural and industrial façades. It provides a stable profile and a straightforward installation process, making it suitable for barns, farm storage and exterior industrial enclosures. Manufactured from hot-dip galvanized steel (S320 GD), the profile is offered in multiple lengths, widths and finishes to match project requirements.

Applications

• Agricultural façades
• Industrial façades
• Barns
• Farm storage
• Industrial buildings

Material & Benefits

• Material: hot-dip galvanized steel S320 GD
• Profile designed for stability and simplified installation on vertical façades
• Adaptable to a range of building types and project specifications

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 1070.0 mm

Thickness & weight

• 0.63 mm: 5.64 kg/m²
• 0.75 mm: 6.71 kg/m²

Coatings available — Essential (25 µ)

• RAL 1002 — #D2AA6D
• RAL 1013 — #E3D9C7
• RAL 1015 — #E6D2B5
• RAL 1019 — #A48F7A
• RAL 1021 — #F6B600
• RAL 2001 — #BA481C
• RAL 3000 — #A72920
• RAL 3009 — #6D342D
• RAL 5002 — #00387A
• RAL 5008 — #2B3A44
• RAL 5010 — #004F7C
• RAL 5011 — #1A2B3C
• RAL 5014 — #637D96
• RAL 5015 — #007CAF
• RAL 5017 — #005B8C
• RAL 6003 — #50533C
• RAL 6005 — #114232
• RAL 6009 — #27352A
• RAL 6011 — #6B7C59
• RAL 6020 — #37422F
• RAL 6021 — #8A9977
• RAL 7006 — #766A5E
• RAL 7012 — #575D5E
• RAL 7015 — #4F5358
• RAL 7016 — #383E42
• RAL 7021 — #2F3234
• RAL 7022 — #4C4A44
• RAL 7032 — #B5B0A1
• RAL 7035 — #d7d7d7
• RAL 7037 — #7A7B7A
• RAL 7042 — #8E9291
• RAL 8004 — #8D4931
• RAL 8011 — #5A3827
• RAL 8012 — #66332B
• RAL 8014 — #4A3526
• RAL 8019 — #3D3635
• RAL 8024 — #795038
• RAL 8025 — #755847
• RAL 9001 — #E9E0D2
• RAL 9002 — #D6D5CB
• RAL 9005 — #0E0E10
• RAL 9006 — #A1A1A0
• RAL 9007 — #868581
• RAL 9010 — #F1EDE1
• RAL 9016 — #F1F1EA
• Woodstructure — #96652A
• 1102 Rouge Tuile — #A65448
• 4750 Gris Nuage — #949599

Coatings available — Ultra
For exterior use in severe environments (profiled elements, sandwich panels, construction materials).

• RAL 1015 — #E6D2B5
• RAL 5008 — #2B3A44
• RAL 7015 — #4F5358
• RAL 7016 — #383E42
• RAL 7021 — #2F3234
• RAL 7022 — #4C4A44
• RAL 7035 — #d7d7d7
• RAL 8012 — #66332B
• RAL 9002 — #D6D5CB
• RAL 9005 — #0E0E10
• RAL 9006 — #A1A1A0
• RAL 9007 — #868581
• RAL 9010 — #F1EDE1
• RAL 9016 — #F1F1EA

Standards

• Galvanized steel: EN 10346:2015 — tolerances according to EN 10143:2006
• Coil coating: EN 10169:2022
• Tolerance (geometry): EN 508-1:2021
• Calculations: EN 1993-1-3:2006

Technical characteristics / specifications

• Product reference: JI 25-267-1070
• Length: Min. 1500.0 mm / Max. 13600.0 mm
• Useful width: Max. 1070.0 mm
• Available thicknesses: 0.63 mm (5.64 kg/m²), 0.75 mm (6.71 kg/m²)
• Material: Steel S320 GD (hot-dip galvanized)
• Available coatings: Essential (25 µ) and Ultra (RAL series and technical finishes)
• Standards: EN 10346, EN 10143, EN 10169, EN 508-1, EN 1993-1-3
