Flat roof tile 20/20

claysmallblack

Overview

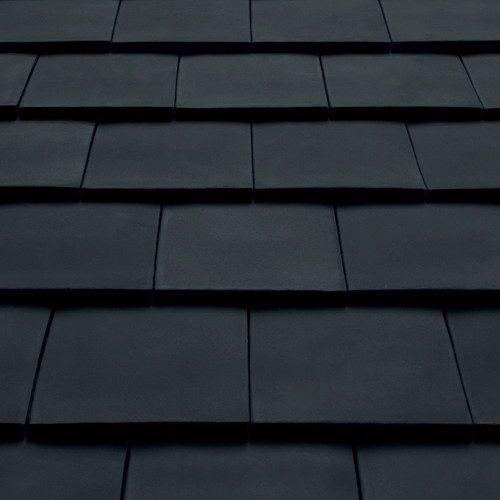

The 20/20 Antique Slate is an interlocking roof tile designed for pitched roofs. Dimensions and profile are optimised for reliable weatherproofing and rapid laying on timber battens. Suitable for residential and light commercial roofing projects. Please verify compatibility with local building regulations prior to specification.

Colour & samples
Please note: the colours, textures and appearance shown in images may vary due to screen settings, display resolution and lighting. Obtain product samples before purchase to confirm finish and shade.

Minimum Roof Pitch

• 15° at a minimum of 100mm headlap
• 22.5° at a minimum of 75mm headlap

Covering Capacity

• 20.9 tiles per m2 at 75mm headlap
• 23.2 tiles per m2 at 100mm headlap

Accessories (examples)

• 20/20 - LH Verge - Antique Slate
• 20/20 - LH Tile and a half - Antique Slate
• 20/20 - RH Tile and a half - Antique Slate
• Duracoat - Half Round Ridge 457 - Antique Slate
• Duracoat - Segmental Ridge 457 - Antique Slate

Technical specifications

• Maximum weight per m²: 45.4 kg
• Quantity per pallet: 480
• Length x Width: 330 x 226 mm
• Cover width: 191 mm
• Hanging length: 300 mm
• Profile depth: 16 mm
• Minimal batten gauge: 210 mm
• Maximum batten gauge: 255 mm
• Minimum roof pitch: 15° (100mm headlap); 22.5° (75mm headlap)
• Covering capacity: 20.9 tiles/m² (75mm headlap); 23.2 tiles/m² (100mm headlap)
