Pan roof tile MODULA

interlockingclaysmall

Description
Please note: the colours, textures and overall appearance of tiles shown in images may vary due to screen settings, display resolution and lighting conditions. Obtain product samples prior to purchase to confirm finish and shade.

Product overview

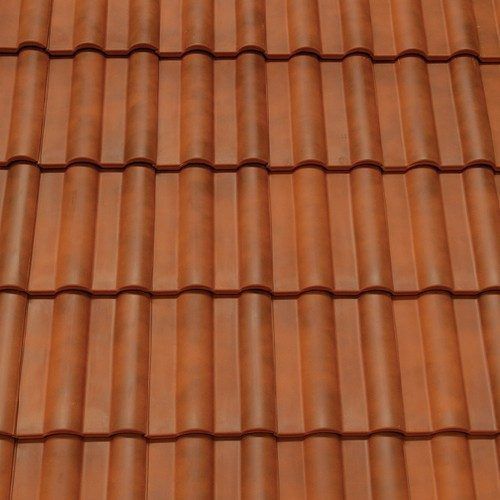

The Modula Chilton Red roof tile is an interlocking pitched-roof tile designed for residential and light commercial applications. It offers a traditional profile suitable for new builds and reroofing projects. The Red finish provides a classic aesthetic for a variety of architectural styles.

Minimum roof pitch
17.5° at a minimum of 100mm headlap
22.5° at a minimum of 75mm headlap

Covering capacity
9.0 tiles per m2 at 75mm headlap
9.7 tiles per m2 at 100mm headlap

Dimensions & weight
Length x Width: 443 x 328 mm
Cover Width: 300 mm
Hanging Length: 416 mm
Profile Depth: 54 mm
Minimal Batten Gauge: 323 mm
Maximum Batten Gauge: 368 mm
Maximum Weight Per Sqm: 40.7 kg
Quantity Per Pallet: 240

Installation notes
Install using the specified batten gauges and headlaps. Verify local building regulations and use appropriate fixings, underlay and ventilation. For material take-off, base calculations on the stated covering capacities.

Technical specifications

• Maximum Weight Per Sqm: 40.7 kg
• Quantity Per Pallet: 240
• Length x Width: 443 x 328 mm
• Cover Width: 300 mm
• Hanging Length: 416 mm
• Profile Depth: 54 mm
• Minimal Batten Gauge: 323 mm
• Maximum Batten Gauge: 368 mm
• Minimum Roof Pitch: 17.5° at 100mm headlap; 22.5° at 75mm headlap
• Covering Capacity: 9.0 tiles/m2 (75mm headlap); 9.7 tiles/m2 (100mm headlap)
