Interlocking roof tile GAELIC
panclaysmall

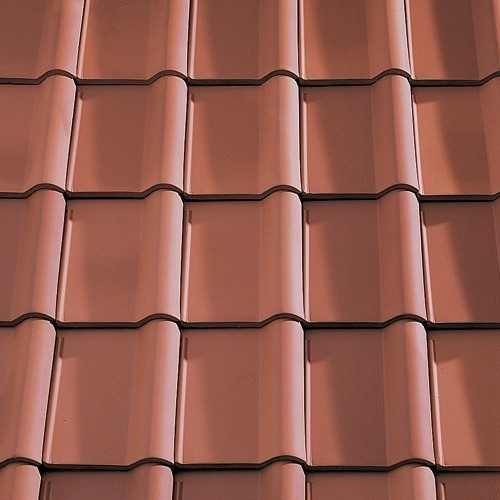

Interlocking roof tile - GAELIC - Wienerberger - pan / clay / small
Interlocking roof tile - GAELIC - Wienerberger - pan / clay / small
Interlocking roof tile - GAELIC - Wienerberger - pan / clay / small - image - 2
Add to favorites
Compare this product

Characteristics

Shape
interlocking, pan
Material
clay
Size
small
Color
red
Length

342 mm
(13 in)

Width

255 mm
(10 in)

Description

Description
Please note: the colours, textures and overall appearance of the tiles shown in images may vary due to screen settings, display resolutions and lighting conditions. You are advised to obtain product samples prior to purchase.

Key product data
Minimum roof pitch: 30°
Headlap (fixed): 75 mm
Covering capacity: 17 tiles per m²

Technical Data
Maximum weight per m²: 40.8 kg
Quantity per pallet: 260

Dimensions
Length x Width: 342 x 255 mm
Cover width: 220 mm
Hanging length: 315 mm
Profile depth: 43 mm
Minimal batten gauge: 267 mm
Maximum batten gauge: 267 mm

Characteristics / technical specifications
  • Minimum roof pitch: 30°
  • Headlap (fixed): 75 mm
  • Covering capacity: 17 tiles per m²
  • Maximum weight per m²: 40.8 kg
  • Quantity per pallet: 260
  • Length x Width: 342 x 255 mm
  • Cover width: 220 mm
  • Hanging length: 315 mm
  • Profile depth: 43 mm
  • Minimal batten gauge: 267 mm
  • Maximum batten gauge: 267 mm
