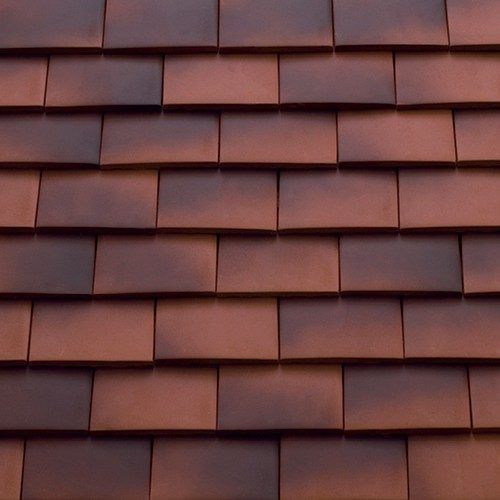

Flat roof tile HUMBER FLANDERS

claysmallcopper-colored

Note
Please note: colours, textures and overall appearance of tiles shown in images may vary due to screen settings, display resolution and lighting. It is recommended to obtain product samples before purchase.

Performance

• Minimum roof pitch (roof): 35°
• Headlap (roof): 65 mm
• Covering capacity (roof): 60 tiles per m²
• Minimum roof pitch (vertical): 75°
• Headlap (vertical): 38 mm
• Covering capacity (vertical): 53 tiles per m²

Technical data

• Maximum weight per m²: 60 kg
• Quantity per pallet: 540

Dimensions
Length x Width: 265 x 165 mm
Cover width: 165 mm
Hanging length: 245 mm
Profile depth: 13 mm
Minimal batten gauge: 100 mm
Maximum batten gauge: 100 mm

Downloads

• Humber Plain Tile Product Datasheet (PDF - 116 KB)
• Guide to Vertical Tiling (PDF - 2 MB)
• Guide to Plain Tiling (PDF - 2 MB)

Technical specifications

• Minimum roof pitch (roof): 35°
• Headlap (roof): 65 mm
• Covering capacity (roof): 60 tiles per m²
• Minimum roof pitch (vertical): 75°
• Headlap (vertical): 38 mm
• Covering capacity (vertical): 53 tiles per m²
• Maximum weight per m²: 60 kg
• Quantity per pallet: 540
• Length x Width: 265 x 165 mm
• Cover width: 165 mm
• Hanging length: 245 mm
• Profile depth: 13 mm
• Minimal batten gauge: 100 mm
• Maximum batten gauge: 100 mm
