Roman roof tile DOUBLE

clayconcretesmall

Overview

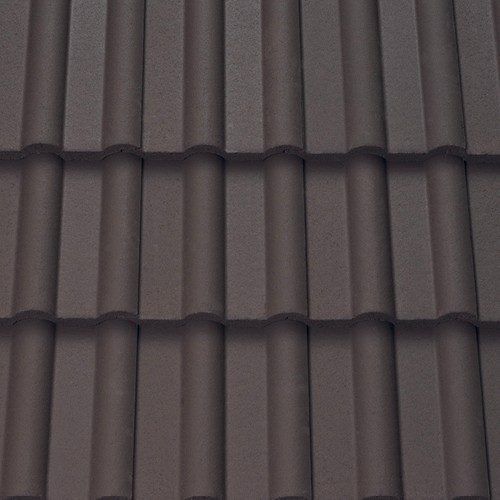

The Double Roman Brown roof tile is a clay/concrete profile designed for pitched roofs, offering a traditional Roman aesthetic. Colours and surface textures may vary between displays; obtain physical samples before final selection.

Minimum Roof Pitch

• 17.5° at a minimum of 100mm headlap
• 22.5° at a minimum of 75mm headlap
• 30° for all sandfaced colours regardless of headlap

Covering Capacity

• 9.7 tiles per m2 at 75mm headlap
• 10.4 tiles per m2 at 100mm headlap

Available downloads (names and formats)

• Inline Tile Ventilator Datasheet — PDF
• Installation guide for Sandtoft Multiverge — PDF
• Double Roman Roof Tiles BIM Object — ZIP
• Roof EPD - Goxhill Production Line G3 — PDF
• Double Roman Product Datasheet — PDF

Technical specifications

• Maximum Weight Per Sqm: 43.5 kg
• Quantity Per Pallet: 216
• Length x Width: 420 x 334 mm
• Cover Width: 300 mm
• Hanging Length: 398 mm
• Profile Depth: 50 mm
• Minimal Batten Gauge: 300 mm
• Maximum Batten Gauge: 345 mm

Applications

• Suitable for new pitched roof installations and refurbishment projects
• Compatible with standard roof ventilators and verge/hip systems referenced in downloads
• Used in residential, heritage restoration and light commercial roofing where a Roman profile is specified
