Flat roof tile BARROW

claysmallbrown

Product overview

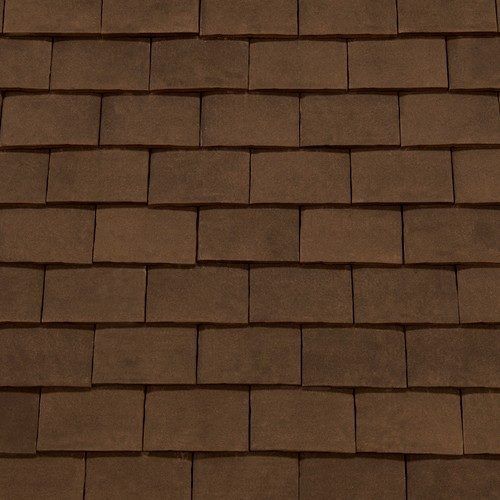

Plain roof tile for pitched roofs and vertical applications. Model Barrow in Burnt Oak colour. Key installation and performance values are provided to support specification and ordering.

Colour and sample note
Please note: The colours, textures, and overall appearance of tiles shown in images may vary due to differences in screen settings, display resolutions, and lighting conditions. You are advised to obtain product samples prior to purchase.

Roof performance (plain tile)
Minimum Roof Pitch (Roof): 35°
Headlap (Roof): 65 mm
Covering Capacity (Roof): 60 tiles/m²

Minimum Roof Pitch (Vertical): 75°
Headlap (Vertical): 38 mm
Covering Capacity (Vertical): 53 tiles/m²

Technical data
Maximum Weight Per Sqm: 60 kg
Quantity Per Pallet: 530

Product dimensions and installation data
Length x Width: 265 x 165 mm
Cover Width: 165 mm
Hanging Length: 245 mm
Profile Depth: 13 mm
Minimal Batten Gauge: 100 mm
Maximum Batten Gauge: 100 mm

Specifications / technical specifications

• Model / range: Barrow
• Colour: Burnt Oak
• Length x Width: 265 x 165 mm
• Cover Width: 165 mm
• Hanging Length: 245 mm
• Profile Depth: 13 mm
• Minimal Batten Gauge: 100 mm
• Maximum Batten Gauge: 100 mm
• Maximum Weight Per Sqm: 60 kg
• Quantity Per Pallet: 530
• Minimum Roof Pitch (standard): 35° (headlap 65 mm) - Covering capacity 60 tiles/m²
• Minimum Roof Pitch (vertical): 75° (headlap 38 mm) - Covering capacity 53 tiles/m²
