Flat roof tile ALBAN
interlockingclaysmall

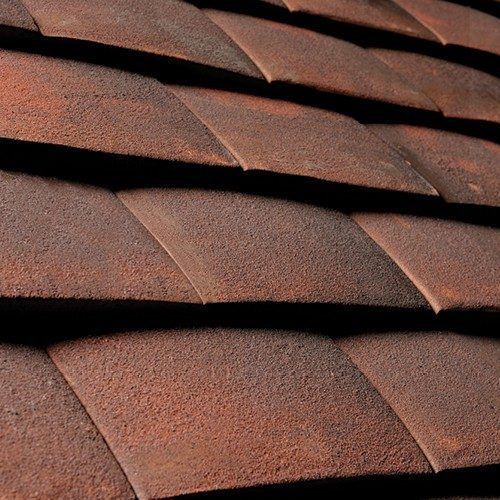

Flat roof tile - ALBAN - Wienerberger - interlocking / clay / small
Flat roof tile - ALBAN - Wienerberger - interlocking / clay / small
Flat roof tile - ALBAN - Wienerberger - interlocking / clay / small - image - 2
Add to favorites
Compare this product

Characteristics

Shape
flat, interlocking
Material
clay
Size
small
Color
brown
Length

265 mm
(10 in)

Thickness

13 mm
(1 in)

Description

Product note
Please note: The colours, textures and overall appearance of tiles shown in images may vary due to differences in screen settings, display resolutions and lighting conditions. You are advised to obtain product samples prior to purchase.

Technical information
Recommended use: residential and architectural roofing, renovation and conservation projects.
Minimum Roof Pitch (Roof): 35°
Headlap (Roof): 65 mm
Covering Capacity (Roof): 60 tiles per m2

Minimum Roof Pitch (Vertical): 75°
Headlap (Vertical): 38 mm
Covering Capacity (Vertical): 53 tiles per m2

Product dimensions and installation data
Length x Width: 265 x 165 mm
Cover Width: 165 mm
Hanging Length: 245 mm
Profile Depth: 13 mm
Minimal Batten Gauge: 100 mm
Maximum Batten Gauge: 100 mm

Packaging and weights
Maximum Weight Per Sqm: 60 kg
Quantity Per Pallet: 510

Characteristics / technical specifications
  • Model: Alban (plain clay roof tile)
  • Finish: Sussex Blend (multi-tonal blend)
  • Minimum roof pitch (roof): 35°
  • Minimum roof pitch (vertical): 75°
  • Headlap (roof): 65 mm
  • Headlap (vertical): 38 mm
  • Covering capacity (roof): 60 tiles/m2
  • Covering capacity (vertical): 53 tiles/m2
  • Length x Width: 265 x 165 mm
  • Cover width: 165 mm
  • Hanging length: 245 mm
  • Profile depth: 13 mm
  • Minimal / Maximum batten gauge: 100 mm
  • Maximum weight per sqm: 60 kg
  • Quantity per pallet: 510
