Flat roof tile ACTUA
claysmallgray

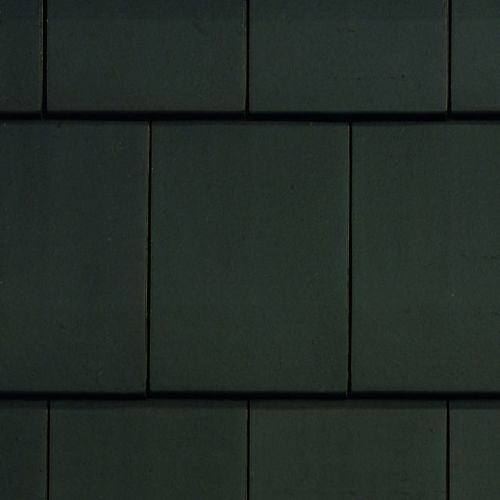

Flat roof tile - ACTUA - Wienerberger - clay / small / gray
Flat roof tile - ACTUA - Wienerberger - clay / small / gray
Flat roof tile - ACTUA - Wienerberger - clay / small / gray - image - 2
Flat roof tile - ACTUA - Wienerberger - clay / small / gray - image - 3
Add to favorites
Compare this product

Characteristics

Shape
flat
Material
clay
Size
small
Color
gray, green
Length

472 mm
(19 in)

Width

303 mm
(12 in)

Thickness

31 mm
(1 in)

Description

Description
The Actua Slate Engobe is a roofing slate tile with an engobe finish, designed for pitched roofs. It offers consistent dimensions for efficient laying and is suitable for new builds and reroofing projects. Colours and textures may vary between samples and images; obtain a physical sample before ordering.

Performance
  • Minimum Roof Pitch: 22.5°
  • Minimum Headlap: 102 mm
  • Maximum Headlap: 162 mm
  • Covering Capacity: 10.5 tiles per m2 at 102 mm headlap


Additional information
  • Length x Width: 472 x 303 mm
  • Cover Width: 262 mm
  • Hanging Length: 440 mm
  • Profile Depth: 31 mm
  • Minimal Batten Gauge: 310 mm
  • Maximum Batten Gauge: 370 mm


Technical specifications
  • Maximum Weight Per Sqm: 46.2 kg
  • Quantity Per Pallet: 240
  • Length: 472 mm
  • Width: 303 mm
  • Cover Width: 262 mm
  • Hanging Length: 440 mm
  • Profile Depth: 31 mm
  • Minimal Batten Gauge: 310 mm
  • Maximum Batten Gauge: 370 mm
  • Covering Capacity: 10.5 tiles per m2 (at 102 mm headlap)
  • Minimum Roof Pitch: 22.5°
  • Headlap range: 102 mm – 162 mm
