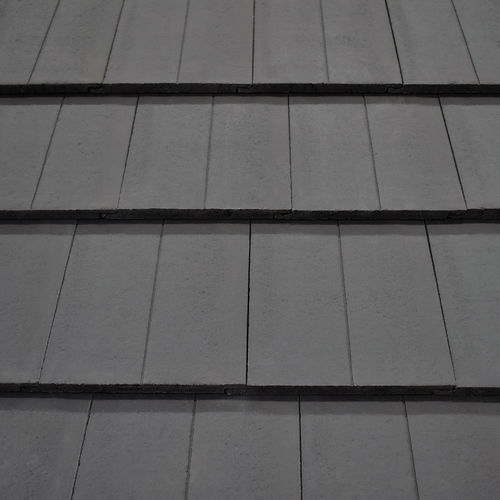

Flat roof tile DUAL DANUM TLE

claysmallgray

Description
Please note: the colours, textures and overall appearance of tiles shown in images may vary due to screen settings, display resolutions and lighting conditions. Obtain product samples prior to purchase to confirm colour and texture.

Minimum Roof Pitch

• 17.5° at a minimum of 100 mm headlap
• 22.5° at a minimum of 75 mm headlap

Covering Capacity

• 9.6 tiles per m² at 75 mm headlap
• 10.3 tiles per m² at 100 mm headlap

Technical Data
Maximum weight per m²: 51.5 kg
Quantity per pallet: 198

Additional Information
Length x Width: 420 x 334 mm
Cover width: 304 mm
Hanging length: 400 mm
Profile depth: 24 mm
Minimal batten gauge: 300 mm
Maximum batten gauge: 345 mm

Technical specifications

• Length x Width: 420 x 334 mm
• Cover width: 304 mm
• Hanging length: 400 mm
• Profile depth: 24 mm
• Minimal batten gauge: 300 mm
• Maximum batten gauge: 345 mm
• Maximum weight per m²: 51.5 kg
• Quantity per pallet: 198
• Minimum roof pitch: 17.5° (100 mm headlap) / 22.5° (75 mm headlap)
• Covering capacity: 9.6 tiles/m² (75 mm headlap) / 10.3 tiles/m² (100 mm headlap)
