Interlocking roof tile DOUBLE PANTILE
panclaysmall

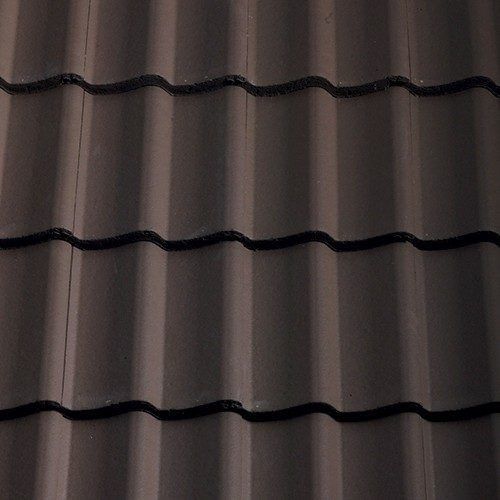

Interlocking roof tile - DOUBLE PANTILE - Wienerberger - pan / clay / small
Interlocking roof tile - DOUBLE PANTILE - Wienerberger - pan / clay / small
Interlocking roof tile - DOUBLE PANTILE - Wienerberger - pan / clay / small - image - 2
Add to favorites
Compare this product

Characteristics

Shape
interlocking, pan
Material
clay
Size
small
Color
brown
Length

420 mm
(17 in)

Width

334 mm
(13 in)

Description

Overview
Please note: the colours, textures and overall appearance of tiles shown in images may vary due to screen settings, display resolution and lighting conditions. We recommend obtaining product samples before purchase to confirm colour and finish.

Minimum Roof Pitch
  • 15° at a minimum of 100mm headlap
  • 22.5° at a minimum of 75mm headlap
  • 30° for all sandfaced colours regardless of headlap

Covering Capacity
  • 9.7 tiles per m2 at 75mm headlap
  • 10.4 tiles per m2 at 100mm headlap

Technical specifications
  • Maximum Weight Per Sqm: 48.9 kg
  • Quantity Per Pallet: 210
  • Length x Width: 420 x 334 mm
  • Cover Width: 300 mm
  • Hanging Length: 402 mm
  • Profile Depth: 55 mm
  • Minimal Batten Gauge: 300 mm
  • Maximum Batten Gauge: 345 mm
