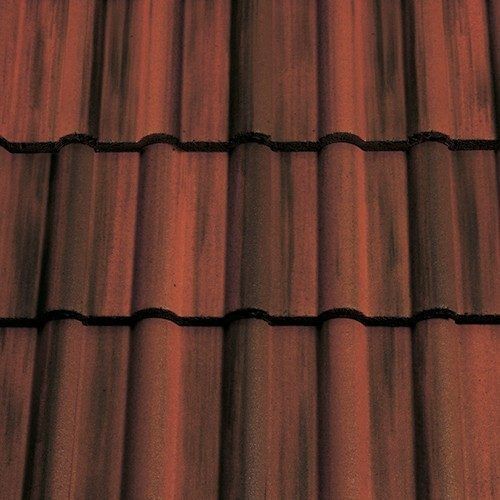

Roman roof tile DOUBLE

claysmallcopper-colored

Overview
Please note: colours, textures and overall appearance of tiles shown in images may vary due to screen settings, display resolution and lighting. Obtain product samples prior to purchase to confirm finish and shade.

Minimum Roof Pitch
17.5° with minimum 100 mm headlap
22.5° with minimum 75 mm headlap
30° for all sandfaced colours regardless of headlap

Covering Capacity
9.7 tiles per m2 at 75 mm headlap
10.4 tiles per m2 at 100 mm headlap

Accessories / Related products

• Duracoat/Concrete Half Round 457 Profile Ridge Pack 6m
• 6m Profile Dry Mono Ridge System - Half Round 457
• Multiverge Ridge Closure Comb
• Double Roman - Half Tile - Rustic
• Double Roman - Cloaked Verge LH - Rustic
• Concrete - Half Round Ridge 457 - Rustic

Downloads (available on product page)

• Inline Tile Ventilator Datasheet (PDF - 654 KB)
• Installation guide for Sandtoft Multiverge (PDF - 4 MB)
• Double Roman Product Datasheet (PDF - 193 KB)
• Double Roman Roof Tiles BIM Object (ZIP - 14 MB)

Technical specifications

• Maximum weight per m²: 43.5 kg
• Quantity per pallet: 216
• Length x Width: 420 x 334 mm
• Cover width: 300 mm
• Hanging length: 398 mm
• Profile depth: 50 mm
• Minimal batten gauge: 300 mm
• Maximum batten gauge: 345 mm
• Minimum roof pitch options: 17.5° (100 mm headlap), 22.5° (75 mm headlap), 30° for sandfaced colours
• Covering capacity: 9.7 tiles/m² (75 mm headlap); 10.4 tiles/m² (100 mm headlap)
