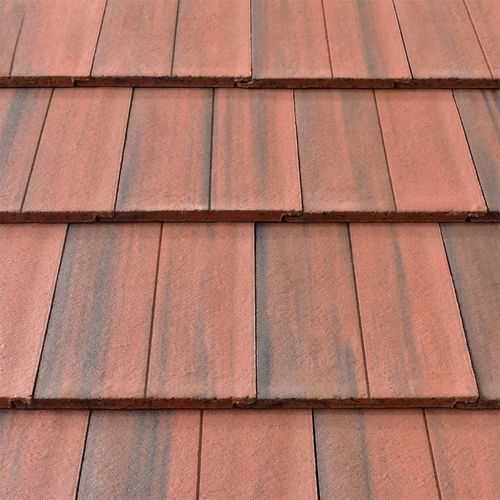

Flat roof tile DUAL DANUM TLE

clayorangesustainable

Overview
Please note: The colours, textures and overall appearance of the tiles shown in images may vary due to screen settings, display resolution and lighting. We recommend obtaining product samples before specifying or purchasing.

Performance

• Minimum roof pitch: 17.5° with at least 100 mm headlap
• Minimum roof pitch: 22.5° with at least 75 mm headlap
• Covering capacity: 9.6 tiles per m2 at 75 mm headlap
• Covering capacity: 10.3 tiles per m2 at 100 mm headlap

Downloads (available)

• UK_MKT_PHO_PSH_ROF_Dual_Danum_TLE_Rustic.jpg (JPG)
• Dual Danum TLE Product Datasheet (PDF)
• Danum TLE Tile Solution Flyer (PDF)
• Dual Danum TLE Tile Flyer (PDF)

Technical specifications

• Maximum weight per m²: 51.5 kg
• Quantity per pallet: 198
• Length x Width: 420 x 334 mm
• Cover width: 304 mm
• Hanging length: 400 mm
• Profile depth: 24 mm
• Minimum batten gauge: 300 mm
• Maximum batten gauge: 345 mm
• Covering capacity: 9.6 tiles per m² at 75 mm headlap; 10.3 tiles per m² at 100 mm headlap
• Minimum roof pitch: 17.5° at 100 mm headlap; 22.5° at 75 mm headlap
