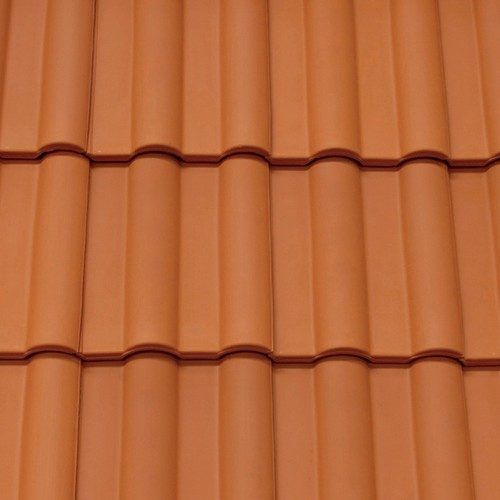

Pan roof tile MODULA NATURAL

interlockingclaysmall

Product information
Please note: the colours, textures and overall appearance of tiles shown in images may vary due to screen settings, display resolution and lighting. Obtain product samples prior to purchase to confirm colour and finish.

Minimum roof pitch
17.5° at a minimum 100 mm headlap
22.5° at a minimum 75 mm headlap

Covering capacity
9.0 tiles per m2 at 75 mm headlap
9.7 tiles per m2 at 100 mm headlap

Technical data
Maximum weight per sqm: 40.7 kg
Quantity per pallet: 240 tiles

Dimensions & profile
Length x Width: 443 x 328 mm
Cover width: 300 mm
Hanging length: 416 mm
Profile depth: 54 mm
Minimal batten gauge: 323 mm
Maximum batten gauge: 368 mm

Specifications

• Minimum roof pitch: 17.5° at 100 mm headlap; 22.5° at 75 mm headlap
• Covering capacity: 9.0 tiles/m2 at 75 mm headlap; 9.7 tiles/m2 at 100 mm headlap
• Maximum weight per sqm: 40.7 kg
• Quantity per pallet: 240 tiles
• Length x Width: 443 x 328 mm
• Cover width: 300 mm
• Hanging length: 416 mm
• Profile depth: 54 mm
• Minimal batten gauge: 323 mm
• Maximum batten gauge: 368 mm
