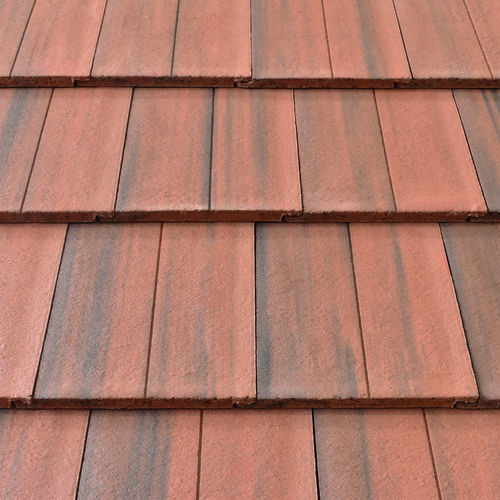

Flat roof tile DUAL DANUM TLE

claysmallcopper-colored

Product overview

Please note: The colours, textures, and overall appearance of bricks shown in images may vary due to differences in screen settings, display resolutions, and lighting conditions. You are advised to obtain product samples prior to purchase.

Support

Need support? If you have questions about our products, our in-house Technical team is here to help. Our team of experts focuses on sustainable construction, providing cutting-edge architectural and design support, including BIM models, planning assistance and product advice. We can offer support at every stage of the process, through planning, design, building and the operational lifespan of the development.

Minimum Roof Pitch

• 17.5° at a minimum of 100mm headlap
• 22.5° at a minimum of 75mm headlap

Covering Capacity

• 9.6 tiles per m2 at 75mm headlap
• 10.3 tiles per m2 at 100mm headlap

Available downloads (names & types)

• Dual Danum TLE Product Datasheet — PDF (591 KB)
• Danum TLE Tile Solution Flyer — PDF (2 MB)
• Dual Danum TLE Tile Flyer — PDF (688 KB)

Caractéristiques / spécifications techniques

• Maximum Weight Per Sqm: 51.5 kg
• Quantity Per Pallet: 198
• Length x Width: 420 x 334 mm
• Cover Width: 304 mm
• Hanging Length: 400 mm
• Profile Depth: 24 mm
• Minimal Batten Gauge: 300 mm
• Maximum Batten Gauge: 345 mm
