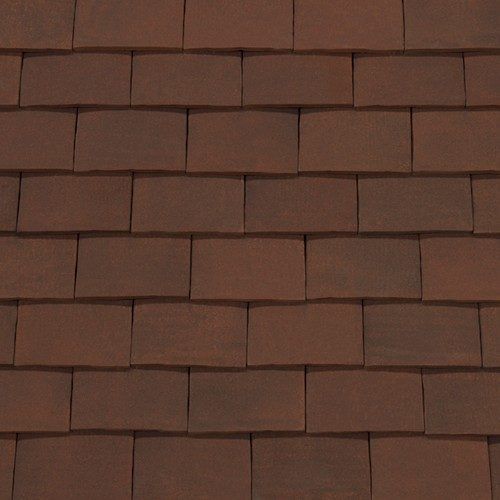

Flat roof tile BARROW DARK RUSPER

claysmallbrown

Overview
Please note: The colours, textures and overall appearance of tiles shown in images may vary due to differences in screen settings, display resolutions and lighting conditions. You are advised to obtain product samples prior to purchase.

Installation data

• Minimum Roof Pitch (Roof): 35°
• Headlap (Roof): 65 mm
• Covering Capacity (Roof): 60 tiles per m2
• Minimum Roof Pitch (Vertical): 75°
• Headlap (Vertical): 38 mm
• Covering Capacity (Vertical): 53 tiles per m2

Technical Data
Maximum Weight Per Sqm: 60 kg
Quantity Per Pallet: 530

Additional information
Length x Width: 265 x 165 mm
Cover Width: 165 mm
Hanging Length: 245 mm
Profile Depth: 13 mm
Minimal Batten Gauge: 100 mm
Maximum Batten Gauge: 100 mm

Accessories (examples)

• Barrow Plain Tile Eaves Tile - Dark Rusper
• Barrow Plain Tile and a half - Dark Rusper
• Barrow Plain Tile Bonnet Hip - Dark Rusper
• Barrow Plain Tile Valley Tile - Dark Rusper
• Multi Tape
• Multifix Adhesive 290ml

Technical specifications

• Product name: Barrow Dark Rusper
• Tile type: Plain tile (Barrow)
• Minimum roof pitch (roof): 35°
• Minimum roof pitch (vertical): 75°
• Headlap (roof): 65 mm
• Headlap (vertical): 38 mm
• Covering capacity (roof): 60 tiles/m2
• Covering capacity (vertical): 53 tiles/m2
• Maximum weight per sqm: 60 kg
• Quantity per pallet: 530
• Length x Width: 265 x 165 mm
• Cover width: 165 mm
• Hanging length: 245 mm
• Profile depth: 13 mm
• Batten gauge (min/max): 100 mm / 100 mm
