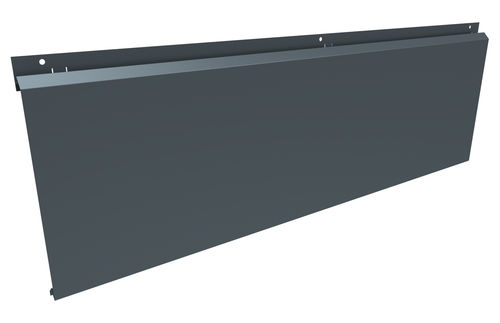

Strip cladding JI GRÉGALE 300

metalsmoothedsmooth

Overview
The JI Grégale 300 is a secret-fix flat façade cladding panel for ventilated façade systems, suitable for new construction and renovation. Panels are installed from bottom to top. The product requires an adjusted supporting structure or an adjustable framework and is not intended for constrained installation directly against insulation.

Installation

• Secret-fix flat façade cladding system
• Installed from bottom to top
• Suitable for new construction and renovation
• Requires an adjusted support or an adjustable framework
• Not for direct constrained installation with insulation

Dimensions
Length: Min. 450.0 mm / Max. 8000.0 mm
Width: Max. 300.0 mm

Thickness & weight
1 mm: 11.12 kg/m²

Material & coatings

• Material: Steel S320 GD
• Other materials available on request: stainless steel (inox), aluminium
• Coating example: Durable (35 µ) — for exterior use where higher corrosion class or UV resistance is required

Colors available (Durable 35 µ)

• 01015 - RAL 1015 - #E6D2B5
• 01019 - RAL 1019 - #A48F7A
• 02001 - RAL 2001 - #BA481C
• 03000 - RAL 3000 - #A72920
• 03020 - RAL 3020 - #BB1F11
• 05008 - RAL 5008 - #2B3A44
• 05011 - RAL 5011 - #1A2B3C
• 05017 - RAL 5017 - #005B8C
• 06018 - RAL 6018 - #60993B
• 06021 - RAL 6021 - #8A9977
• 06029 - RAL 6029 - #006F3D
• 07015 - RAL 7015 - #4F5358
• 07016 - RAL 7016 - #383E42
• 07022 - RAL 7022 - #4C4A44
• 07035 - RAL 7035 - #D7D7D7
• 07037 - RAL 7037 - #7A7B7A
• 07042 - RAL 7042 - #8E9291
• 08004 - RAL 8004 - #8D4931
• 09002 - RAL 9002 - #D6D5CB
• 09005 - RAL 9005 - #0E0E10
• 09006 - RAL 9006 - #A1A1A0
• 09007 - RAL 9007 - #868581
• 09010 - RAL 9010 - #F1EDE1

Reference standards
Galvanized steel: EN 10346:2015 — tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Geometry/tolerance: EN 508-1:2021
Structural calculations: EN 1993-1-3:2006
Additional national references (where applicable): NF EN 10346:2015, NF EN 10169:2022, CSTB 3747:2014, NF EN 1993-1-3+NA:2007

Notes
Product designed as a secret-fix siding; requires appropriate supporting structure or adjustable framework for correct installation. Verify compatibility with specified insulation and fixing systems prior to installation.

Technical specifications

• Commercial name / model: JI Grégale 300
• Type: Secret-fix flat façade cladding panel
• Use: Façade siding for new build and renovation
• Installation direction: bottom to top
• Length range: Min. 450.0 mm — Max. 8000.0 mm
• Maximum width: 300.0 mm
• Thickness / weight (example): 1 mm = 11.12 kg/m²
• Standard material: Steel S320 GD (other materials on request: stainless steel, aluminium)
• Available coating (example): Durable (35 µ) — for higher corrosion/UV resistance
• Applicable standards: EN 10346:2015, EN 10143:2006, EN 10169:2022, EN 508-1:2021, EN 1993-1-3:2006 (and national equivalents)
