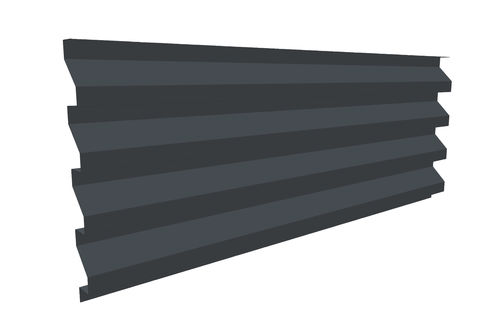

Panel cladding JI ETÉSIEN 37

steelribbed

Product description
JI Etésien 37 profiles are ridged façade cladding profiles designed for visible fixing on a secondary framework adapted to the support (panels, masonry or similar). The product requires an adjusted support or an adjustable framework. Depending on the desired aesthetic, profiles can be installed vertically or horizontally. Installation is performed by overlapping. The trapezoidal-wave profile can also be used for awnings or sunshading applications; perforated versions available on request.

Usage & installation

• Ribbed façade cladding (clapboard-type profiles)
• Visible fixing on a secondary framework
• Support: panel, masonry or adapted secondary framework
• Support requirement: adjusted support or adjustable framework
• Orientation: vertical or horizontal installation
• Installation method: overlapping
• Also usable as awnings or sunshades; perforated variants possible

Dimensions
Length: Min. 1200.0 mm / Max. 6000.0 mm
Width: Max. 360.0 mm

Thickness & weight
0.75 mm: 9.98 kg/m²

Materials
Steel S320 GD. Other materials available on request: stainless steel (inox), aluminium.

Coatings / Finishes

• Essential (25 µ): Basic coil coating for external applications (cladding, roofing and accessories). Sample colours include:
  • 01002 RAL 1002
  • 01013 RAL 1013
  • 01015 RAL 1015
  • 01019 RAL 1019
  • 01021 RAL 1021
  • 02001 RAL 2001
  • 03000 RAL 3000
  • 03009 RAL 3009
  • 05002 RAL 5002
  • 05008 RAL 5008
  • 05010 RAL 5010
  • 05011 RAL 5011
  • 05014 RAL 5014
  • 05015 RAL 5015
  • 05017 RAL 5017
  • 06003 RAL 6003
  • 06005 RAL 6005
  • 06009 RAL 6009
  • 06011 RAL 6011
  • 06020 RAL 6020
  • 07016 RAL 7016
  • 07035 RAL 7035
  • 09010 RAL 9010
  • 09016 RAL 9016
  • 50004 Woodstructure
• JI Nature Wood (45 µ): Pre-painted steel with wood look; sample colours: 90169 Wood Heritage, 90170 Nature Heritage, 90171 Nature Light Oak
• JI Nature Charcoal: Pre-painted steel with wood look; colour: 90174 Charcoal
• Ultra: High-performance coil coating for severe external environments; sample RAL colours available
• Ultra-X (Ultra 75): Most durable coating for roofing and cladding; alternative to PVC/plastisol finishes

Standards & references
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Geometry tolerances: EN 508-1:2021
Calculations: EN 1993-1-3:2006

Notes
Installation requires a compatible secondary framework and is performed with visible fixings. Profiles are designed for overlapping installation and can serve as façade cladding or awnings. Perforated versions and alternative materials available on request.

Technical specifications

• Product name: JI Etésien 37
• Model: JI Etésien 37
• Material: Steel S320 GD (inox, aluminium on request)
• Length range: Min. 1200.0 mm / Max. 6000.0 mm
• Width: Max. 360.0 mm
• Thickness / Weight: 0.75 mm → 9.98 kg/m²
• Installation: visible fix on secondary framework; overlapping; vertical or horizontal orientation
• Use cases: façade cladding, awnings, sunshading
• Standards: EN 10346:2015; EN 10143:2006 (tolerances); EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
• Available coatings: Essential (25 µ), JI Nature Wood (45 µ), JI Nature Charcoal, Ultra, Ultra-X (Ultra 75)
