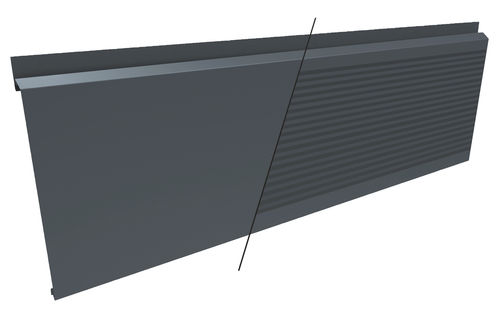

Strip cladding JI ALBE 300

metalribbed

Product description
The JI Albe 300 is a secret-fix flat façade cladding system designed for new build and renovation. Panels are installed from bottom to top and require an adjusted support or an adjustable sub-frame; not intended for constrained direct installation over insulation.

Dimensions
Length: Min. 1000.0 mm / Max. 8000.0 mm
Width: Max. 300.0 mm

Thickness & weight
1 mm: 11.12 kg/m² (for 300 mm width)

Material
Steel S320 GD

• Other materials available on request: stainless steel, aluminium

Coatings (example)
Durable coil coating (35 µ) for external use: cladding, roofing and accessories in environments requiring higher corrosion class or enhanced UV resistance.

• Available colours (code — description — hex): 01015 — RAL 1015 — #E6D2B5
• 01019 — RAL 1019 — #A48F7A
• 02001 — RAL 2001 — #BA481C
• 03000 — RAL 3000 — #A72920
• 03020 — RAL 3020 — #BB1F11
• 05008 — RAL 5008 — #2B3A44
• 05011 — RAL 5011 — #1A2B3C
• 05017 — RAL 5017 — #005B8C
• 06018 — RAL 6018 — #60993B
• 06021 — RAL 6021 — #8A9977
• 06029 — RAL 6029 — #006F3D
• 07015 — RAL 7015 — #4F5358
• 07016 — RAL 7016 — #383E42
• 07022 — RAL 7022 — #4C4A44
• 07035 — RAL 7035 — #d7d7d7
• 07037 — RAL 7037 — #7A7B7A
• 07042 — RAL 7042 — #8E9291
• 08004 — RAL 8004 — #8D4931
• 09002 — RAL 9002 — #D6D5CB
• 09005 — RAL 9005 — #0E0E10
• 09006 — RAL 9006 — #A1A1A0
• 09007 — RAL 9007 — #868581
• 09010 — RAL 9010 — #F1EDE1

Installation & use
Secret-fix flat façade cladding system; installed from bottom to top; suitable for new construction and renovation; requires an adjusted support or an adjustable framework; not for direct constrained installation with insulation.

Reference standards
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Tolerance (geometry): EN 508-1:2021
Calculations: EN 1993-1-3:2006

Technical specifications

• Model: JI Albe 300
• Product type: Secret-fix flat façade cladding system
• Installation direction: bottom to top
• Length range: Min. 1000.0 mm — Max. 8000.0 mm
• Maximum width: 300.0 mm
• Thickness & weight example: 1 mm = 11.12 kg/m² (for 300 mm width)
• Material: Steel S320 GD (other materials on request: stainless steel, aluminium)
• Coating example: Durable (35 µ) — for higher corrosion class / UV resistance
• Available RAL colours: see list (RAL 1015, 1019, 2001, 3000, 3020, 5008, 5011, 5017, 6018, 6021, 6029, 7015, 7016, 7022, 7035, 7037, 7042, 8004, 9002, 9005, 9006, 9007, 9010)
• Reference standards: EN 10346:2015; EN 10143:2006; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
