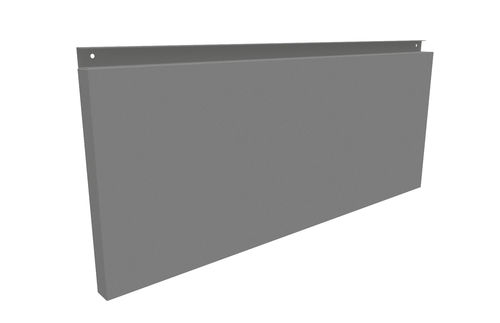

Cassette cladding JI BORÉAS XLS

steelsmoothedsmooth

Overview
The JI Boréas XLS cassette is a flat cladding concept with a secret fix designed for both new build and renovation. The cassettes are fixed to an adjusted or adjustable framework attached to steel support, concrete or masonry. Installation can be horizontal or vertical depending on the aesthetic. The cassette features a self-locking principle that ensures longitudinal joints between cassettes are maintained. It can be supplied with or without a hollow joint according to the desired appearance.

Coating - Durable (35 µ)
External uses: cladding, roofing and accessories in environments requiring higher corrosion class or enhanced UV resistance.

Available colours (RAL)

• RAL 1015
• RAL 1019
• RAL 2001
• RAL 3000
• RAL 3020
• RAL 5008
• RAL 5011
• RAL 5017
• RAL 6018
• RAL 6021
• RAL 6029
• RAL 7015
• RAL 7016
• RAL 7022
• RAL 7035
• RAL 7037
• RAL 7042
• RAL 8004
• RAL 9002
• RAL 9005
• RAL 9006
• RAL 9007
• RAL 9010

Dimensions
Length: Min. 200.0 mm / Max. 2900.0 mm
Width: Min. 200.0 mm / Max. 1000.0 mm

Thickness & weight
1.5 mm: 14.05 kg/m² (width 1000 mm)

Characteristics

• Material: Steel S320 GD
• Other materials available on request: stainless steel, aluminium
• Self-locking principle ensures longitudinal joints are always respected
• Installation orientation: horizontal or vertical
• Requires an adjusted or adjustable framework; fixed to a framework attached to steel support, concrete or masonry

Reference standards

• Galvanized steel: EN 10346:2015 — tolerances according to EN 10143:2006
• Coil coating: EN 10169:2022
• Tolerance (geometry): EN 508-1:2021
• Calculations: EN 1993-1-3:2006

Technical specifications

• Product: JI Boréas XLS cassette
• Material: Steel S320 GD (other materials on request: stainless steel, aluminium)
• Standard nominal thickness example: 1.5 mm (example weight: 14.05 kg/m² at 1000 mm width)
• Length range: 200.0 mm – 2900.0 mm
• Width range: 200.0 mm – 1000.0 mm
• Coating option: Durable (35 µ) for higher corrosion class and UV resistance
• Installation: fixed on adjusted/adjustable framework to steel, concrete or masonry; horizontal or vertical mounting
• Applicable standards: EN 10346:2015, EN 10143:2006, EN 10169:2022, EN 508-1:2021, EN 1993-1-3:2006
• Colour availability: multiple RAL options listed above
