Strip cladding JI BREVA 27

steelribbed

Overview

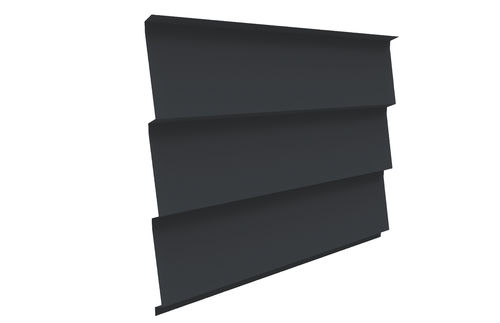

JI Breva 27 is a profiled cladding (siding) profile designed for façade applications. It is fixed with visible fastenings onto an adapted secondary framework or support (panels, masonry, etc.). The product requires a levelled support or an adjustable framework. Profiles can be installed vertically or horizontally depending on the desired aesthetic and are mounted by overlapping. They can also be used as sunshades/awnings; perforated options available on request.

Installation & use

• Installed with visible fixings on a secondary framework adapted to the support (panel, masonry, etc.).
• Requires a levelled support or an adjustable framework.
• Can be installed vertically or horizontally according to aesthetic requirements.
• Installation principle: overlapping.
• Can be used as sunshades/awnings; perforation possible on request.

Dimensions
Length: Min. 1200 mm / Max. 6000 mm
Width: Max. 510 mm

Thickness & weight
0.75 mm: 7.04 kg/m²

Materials

• Material: Steel S320 GD (standard).
• Other materials available on request: stainless steel (inox), aluminium.

Coatings (examples)

• Essential (25 µ) — Basic coil coating for exterior building applications (cladding, roofing and accessories).
• JI Nature Wood (45 µ) — Pre-painted steel with high weather resistance, wood-look finish (several wood-like colours available).
• JI Nature Charcoal (45 µ) — Pre-painted steel, wood-look in charcoal colour option.
• Ultra — Textured finish for demanding external environments (profiles, sandwich panels for roofing and cladding).
• Ultra-X (Ultra 75) — Highest durability coating for roofing and cladding; high-performance alternative to plastisol/PVC systems.

Reference standards
Galvanized steel: EN 10346:2015 — tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Tolerance (geometry): EN 508-1:2021
Calculations: EN 1993-1-3:2006

Characteristics / technical specifications

• Product name: JI Breva 27.
• Brand: Joris Ide.
• Use: Cladding profile, siding type.
• Installation: Visible fixing on secondary framework; requires levelled support or adjustable framework.
• Orientation: Vertical or horizontal installation possible.
• Mounting principle: Overlapping; possible use as sunshade/awning; perforation on request.
• Length range: Min. 1200 mm — Max. 6000 mm.
• Maximum width: 510 mm.
• Thickness / weight: 0.75 mm — 7.04 kg/m².
• Material: Steel S320 GD (other materials on request: stainless steel, aluminium).
• Coating options: Essential (25 µ), JI Nature Wood (45 µ), JI Nature Charcoal (45 µ), Ultra, Ultra-X (Ultra 75).
• Standards: EN 10346:2015; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006.
