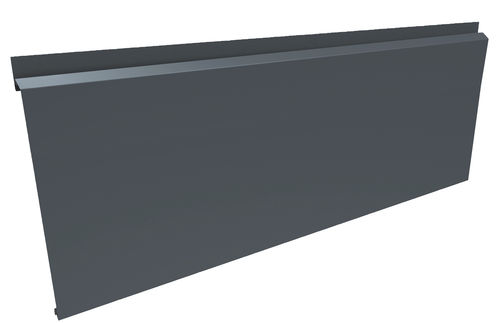

Strip cladding JI ALBE 500

metalsmooth

Overview Secret-fix flat façade cladding system for new construction and renovation. Installed from bottom to top. Requires an adjusted support or an adjustable framework; not suitable for constrained installation with insulation.

Dimensions
Length: Min. 1000.0 mm / Max. 8000.0 mm
Width: Max. 500.0 mm

Thickness & weight

• 1.5 mm: 14.72 kg/m² (at 500 mm width)

Material & coatings

• Material: Steel S320 GD (other materials on request: stainless steel, aluminium)
• Coating example: Durable (35 µ) — for external use in environments requiring higher corrosion class or improved UV resistance

Reference standards
Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006
Coil coating: EN 10169:2022
Tolerance / geometry: EN 508-1:2021
Calculations: EN 1993-1-3:2006

Installation information

• Installation direction: from bottom to top
• Fixings: hidden
• Mounting: on an adjusted or adjustable framework; do not fix in constraint with insulation

Technical characteristics / specifications

• Model: JI Albe 500
• Length range: 1000.0 mm — 8000.0 mm
• Maximum useful width: 500.0 mm
• Thickness example: 1.5 mm
• Weight example: 14.72 kg/m² (for 500 mm width, 1.5 mm thickness)
• Base material: Steel S320 GD (stainless steel, aluminium available on request)
• Coating example: Durable (35 µ)
• Applicable standards: EN 10346:2015; EN 10143:2006; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006
