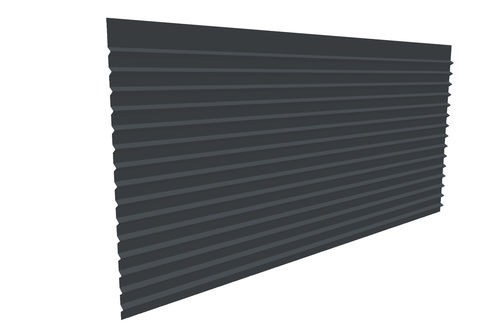

Panel cladding JI BRISE 10

steelgrooved

Description
JI Brise 10 is an architectural cladding profile with visible fixing, designed for new build and renovation in residential and commercial projects. The profile is fixed to a secondary framework adapted to the support (panels, masonry, etc.). This product requires an adjusted support or an adjustable framework. Depending on the desired aesthetic, profiles can be installed vertically or horizontally. Installation is done by overlapping of double wavelength.

Installation & use

• Visible fixing to a secondary framework.
• Mounting on a secondary framework adapted to the support (panels, masonry, etc.).
• Support required: adjusted support or adjustable framework.
• Orientation: vertical or horizontal according to design.
• Installation method: overlapping of double wavelength.
• Reference compliance: RAGE 2014 (where applicable).

Dimensions
Length: Min. 1200.0 mm / Max. 6000.0 mm
Width: Min. 377.0 mm / Max. 406.0 mm

Thickness & weight
0.75 mm: 8.85 kg/m²

Materials

• Standard material: Steel S320 GD.
• Other materials available on request: inox (stainless steel), aluminium.

Coating / finishing options

• Essential (25 µ) — basic coil-coating for exterior applications (cladding, roofing, accessories).
• JI Nature Wood (45 µ) — pre-painted steel with wood appearance.
• JI Nature Charcoal (45 µ) — dark wood-look pre-painted steel.
• Ultra — enhanced surface for severe environments.
• Ultra-X (Ultra 75) — highest-durability coating for roofing and cladding.

Standards & controls

• Galvanized steel: EN 10346:2015 - tolerances according to EN 10143:2006.
• Coil coating: EN 10169:2022.
• Geometry tolerances: EN 508-1:2021.
• Structural calculations: EN 1993-1-3:2006.

Technical specifications

• Product name / model: JI Brise 10.
• Dimensions: length 1 200–6 000 mm; width 377–406 mm.
• Thickness / surface weight: 0.75 mm → 8.85 kg/m².
• Material: Steel S320 GD (other materials on request: inox, aluminium).
• Mounting: visible fixing to secondary framework; requires adjusted support or adjustable framework; vertical or horizontal installation; overlapping of double wavelength.
• Coating options: Essential (25 µ), JI Nature Wood (45 µ), JI Nature Charcoal (45 µ), Ultra, Ultra-X (Ultra 75).
• Applicable standards: EN 10346:2015; EN 10169:2022; EN 508-1:2021; EN 1993-1-3:2006.
• Downloads: technical data sheet, installation instructions, coating datasheets and certificates available on request.
