Mechanical lock 1000
with handleglass doorfor sliding doors

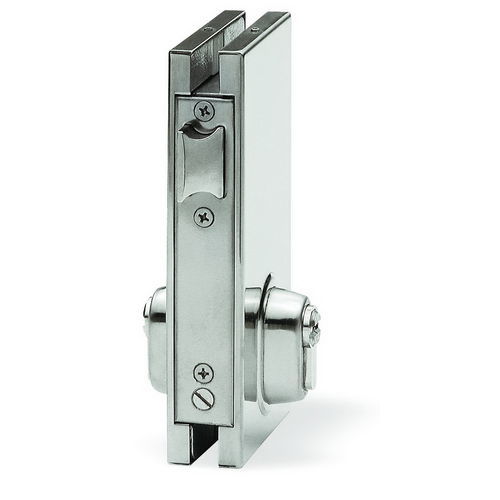

Mechanical lock - 1000 - Trivel - with handle / glass door / for sliding doors

Mechanical lock - 1000 - Trivel - with handle / glass door / for sliding doors

Mechanical lock - 1000 - Trivel - with handle / glass door / for sliding doors - image - 2

Mechanical lock - 1000 - Trivel - with handle / glass door / for sliding doors - image - 3

Mechanical lock - 1000 - Trivel - with handle / glass door / for sliding doors - image - 4

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: glass door, for sliding doors
Number of locking points: multipoint
Market: commercial, retail, home
Installation: surface-mounted
Material: stainless steel, alloy, polished stainless steel
Finish: satin
Color: silver-colored
Other characteristics: high-security

Description

Latch bolt/deadbolt with cylinder Glass clamping plates made of aluminium alloy via injection process and coated with epoxy paint A2 stainless steel screws Front plates in AISI 304 stainless steel Decorative covers in AISI 316 stainless steel Handles and knobs in AISI 316 stainless steel Glass clamping gaskets made of PE material Euro-profile multipoint security cylinder Reversible latch operated by key, 10 mm latch projection Deadbolt with two full key turns and anti-saw protection, 20 mm bolt projection Cylinder entrance: 40 mm Certified under UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified under UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance Finishes: Polished stainless steel – Satin stainless steel Glass thickness: 10 mm Electrolytic finishes RAL colours (/T) Stop for outward-opening lock, for installation with strike plate WITHOUT electric strike (/TE) Stop for outward-opening lock, for installation WITH electric strike (recommended to prevent tampering) Desired stop can be ordered by adding (/T) or (/TE) after the selected lock reference Glass thicknesses up to 17.52 mm

Catalogs

2022 Corporate Catalogue

2022 Corporate Catalogue

152 Pages

Trivel 2018-19

156 Pages

Comparativa G-100E vs G-100

Comparativa G-100E vs G-100

1 Pages
