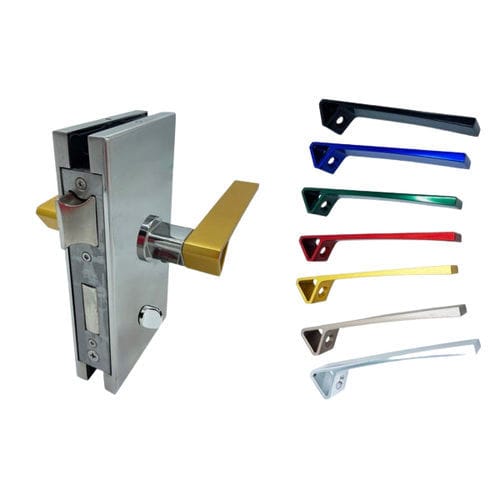

Mechanical lock MEIA CRONO
with handledoormultipoint

Mechanical lock - MEIA CRONO - Trivel - with handle / door / multipoint

Mechanical lock - MEIA CRONO - Trivel - with handle / door / multipoint

Mechanical lock - MEIA CRONO - Trivel - with handle / door / multipoint - image - 2

Mechanical lock - MEIA CRONO - Trivel - with handle / door / multipoint - image - 3

Mechanical lock - MEIA CRONO - Trivel - with handle / door / multipoint - image - 4

Mechanical lock - MEIA CRONO - Trivel - with handle / door / multipoint - image - 5

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: door
Number of locking points: multipoint
Market: commercial, home
Installation: built-in, surface-mounted
Material: stainless steel, alloy, steel
Finish: high-gloss, satin
Color: silver-colored
Other characteristics: high-security, for access control, anti-panic, vertical, for indoor use, keyless, wireless

Description

Latch / lever with lock and CRONO handles TRIVEL offers with this ingenious, patented solution the possibility to change the lock’s aesthetics in just a few seconds. Compatible with the notch of the MEIA series. (Allows changing the lock while keeping the existing door). A wide range of HANDLES with bright and satin colours that will stand out on glass doors. Glass clamping plates made of aluminium alloy via injection process and coated with epoxy paint Stainless steel A2 screws Front plates in AISI 304 stainless steel Decorative covers in AISI 316 stainless steel Handles made of extruded aluminium alloy with anodized finish in various colours, reversible and interchangeable thanks to the stainless steel adapter design between handle and lock New rectangular cylinder cover design harmonizing with the lock and handle set Glass clamping gaskets made of PE material Euro-profile multipoint security cylinder Reversible latch operated by key, latch projection 10 mm Deadbolt with two full key turns and anti-saw treatment, lever projection 20 mm Cylinder entrance 40 mm Certified according to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified according to UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance
