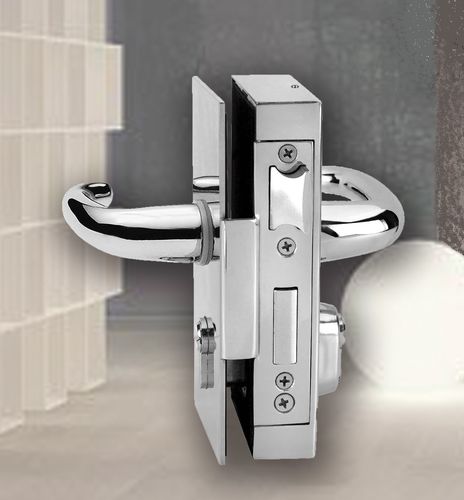

Mechanical lock 1201
with handleglass doorfor sliding doors

Mechanical lock - 1201 - Trivel - with handle / glass door / for sliding doors

Mechanical lock - 1201 - Trivel - with handle / glass door / for sliding doors

Mechanical lock - 1201 - Trivel - with handle / glass door / for sliding doors - image - 2

Mechanical lock - 1201 - Trivel - with handle / glass door / for sliding doors - image - 3

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: glass door, for sliding doors
Number of locking points: multipoint
Market: commercial, retail, home
Installation: surface-mounted
Material: stainless steel
Finish: satin
Color: silver-colored
Other characteristics: high-security

Description

Press-fit installation (gluing to the glass is recommended) Handles made of stainless steel AISI 316 Screws made of stainless steel A2 Decorative covers made of stainless steel AISI 316 Euro profile multipoint security cylinder Glass clamping gaskets made from cork rubber material Reversible latch operated by key, latch throw 10 mm Lever with two turns of the key and anti-cut treatment, lever throw 20 mm Cylinder entry 40 mm Certified according to standard UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified according to standard UNE-EN 1670:2007/AC:2008, Grade 5, highest corrosion resistance Finishes: Bright stainless steel – Satin stainless steel Glass thickness 10 mm Electrolytic finishes RAL colours (/T) Stop in the mechanism for locks with outward opening, for installation with strike plate WITHOUT electric door opener (/TE) Stop in the mechanism for locks with outward opening, for installation WITH strike plate and electric door opener (recommended to prevent tampering) (/SCU) Stop in the bracket for locks with outward opening (recommended to prevent tampering) The desired stop can be ordered by adding (/T), (/TE), or (/SCU) after the selected lock reference Glass thicknesses up to 17.52 mm
