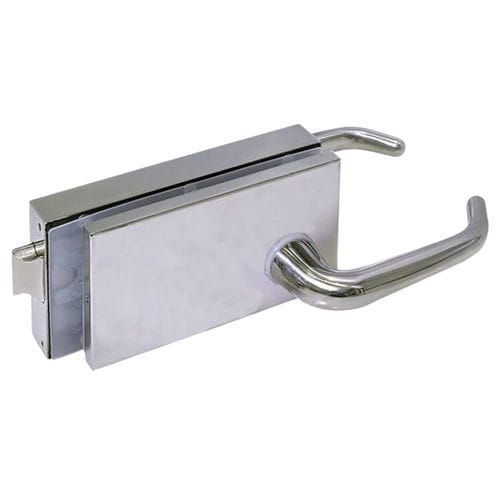

Mechanical lock 1703

with handledoormultipoint

Description
JANO – Horizontal lock for framed doors with or without rebate. Intended for enclosure hardware and glass projects. Available in multiple variants depending on latch type and accessories (handles, knobs, cylinder).

GENERAL FEATURES

• Horizontal lock for framed doors with or without rebate
• Glass clamping plates made of injected aluminium alloy with epoxy paint coating
• Fasteners in stainless steel A2
• Front plates in stainless steel AISI 304
• Cover plates in stainless steel AISI 316
• Handles and knobs in stainless steel AISI 316
• Glass clamping gaskets made of PE material
• Euro-profile multipoint security cylinder
• Reversible latch operated by key, latch throw 12 mm; latch throw when key-operated 23 mm
• Lever with two key turns and anti-cut treatment, lever throw 20 mm
• Cylinder entry 60 mm
• Certified to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles
• Certified to UNE-EN 1670:2007/AC:2008, Grade 5 (highest corrosion resistance)

STANDARD MANUFACTURE

• Finishes: polished stainless – satin stainless
• Recommended glass thickness: 10 mm

OPTIONS ON REQUEST

• Electrolytic finishes
• RAL colours

AVAILABLE VARIANTS

• 1700 – Cylinder latch - rebated frame
• 1701 – Cylinder latch and handles - rebated frame
• 1702 – Cylinder latch and knobs 001R – rebated frame
• 1702/1 – Cylinder latch and fixed knobs 002R – rebated frame
• 1703 – Latch with handles - rebated frame
• 1704 – Latch with knobs 001R – rebated frame
• 1705 – Cylinder latch - non-rebated frame
• 1706 – Cylinder latch and handles – non-rebated frame
• 1707 – Cylinder latch and fixed knobs 002R – non-rebated frame
• 1708 – Latch with handles – non-rebated frame
• 1709 – Latch with knobs 001R – non-rebated frame

ADDITIONAL INFORMATION
Includes technical drawings and glass machining templates, plus instruction documentation for fixed and movable knobs.

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Materials: aluminium alloy (clamping plates), stainless steel A2 (fasteners), AISI 304 (front plates), AISI 316 (cover plates, handles and knobs)
• Clamping gaskets: PE material
• Cylinder: euro-profile multipoint security; cylinder entry 60 mm
• Latch: reversible; throws 12 mm / 23 mm depending on operation
• Lever: two key turns, anti-cut treatment; lever throw 20 mm
• Standards and certifications: UNE-EN 1935:2002/AC:2004 (Grade 7 / 200,000 cycles), UNE-EN 1670:2007/AC:2008 (Grade 5 corrosion resistance)
• Compatible glass thickness: 10 mm
• Standard finishes: polished and satin stainless; options on request: electrolytic and RAL colours
