Mechanical lock 1039/1
doormultipointcommercial

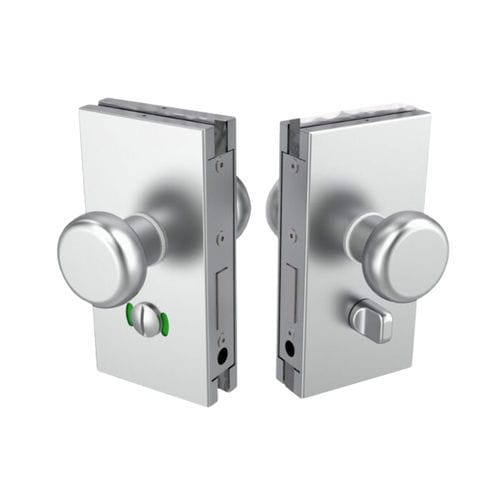

Mechanical lock - 1039/1 - Trivel - door / multipoint / commercial

Mechanical lock - 1039/1 - Trivel - door / multipoint / commercial

Mechanical lock - 1039/1 - Trivel - door / multipoint / commercial - image - 2

Mechanical lock - 1039/1 - Trivel - door / multipoint / commercial - image - 3

Mechanical lock - 1039/1 - Trivel - door / multipoint / commercial - image - 4

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Product applications: door
Number of locking points: multipoint
Market: commercial, home
Installation: built-in
Material: stainless steel, alloy, polished stainless steel
Finish: satin
Color: red, green
Other characteristics: high-security, for access control, keyless, vertical, anti-panic, wireless, for indoor use

Description

Deadbolt with privacy lock and fixed knobs 002R – ON/OFF indicator Glass clamping plates made of aluminium alloy using an injection process, coated with epoxy paint A2 stainless steel screws Front plates in AISI 304 stainless steel Decorative covers in AISI 316 stainless steel Handles and knobs in AISI 316 stainless steel Glass clamping gaskets made of PE material Lever-operated indicator toggle (Green = ON, Red = OFF) Reversible latch operated by key, 10 mm latch projection Certified under UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified under UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance Finishes: Polished stainless steel – Satin stainless steel Glass thickness: 10 mm Electrolytic finishes RAL colours (/T) Stop for outward-opening lock, for installation with strike plate WITHOUT electric strike Desired stop can be ordered by adding (/T) after the selected lock reference Glass thicknesses up to 17.52 mm

Catalogs

2022 Corporate Catalogue

2022 Corporate Catalogue

152 Pages
