Mechanical lock 1706
with handledoormultipoint

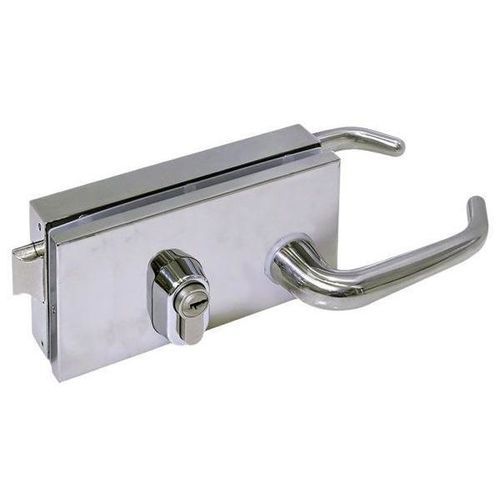

Mechanical lock - 1706 - Trivel - with handle / door / multipoint

Mechanical lock - 1706 - Trivel - with handle / door / multipoint - image - 2

Mechanical lock - 1706 - Trivel - with handle / door / multipoint - image - 3

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: door
Number of locking points: multipoint
Market: commercial
Installation: surface-mounted
Material: stainless steel
Finish: high-gloss
Color: silver-colored
Other characteristics: high-security

Description

GENERAL FEATURES

Horizontal lock for framed doors (with or without rebate).
Glass-clamp plates manufactured in aluminium alloy by injection molding and coated with epoxy paint.
Screwwork in stainless steel A2.
Front plates in stainless steel AISI 304.
Cover caps in stainless steel AISI 316.
Handles and knobs in stainless steel AISI 316.
Glass-clamping gaskets made of PE.
Multipoint euro-profile cylinder.
Reversible latch operated by key: latch throw 12 mm; latch throw when key-operated 23 mm.
Lever with two key turns and anti-cut treatment, lever projection 20 mm.
Cylinder entry 60 mm.
Certified to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles.
Certified to UNE-EN 1670:2007/AC:2008, Grade 5 (maximum corrosion resistance).

STANDARD MANUFACTURE

Finishes: polished stainless steel – satin stainless steel.
Recommended glass thickness: 10 mm.

OPTIONS ON REQUEST

Electrolytic finishes.
RAL colours.

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

Series / Trade name: JANO.
Type: Horizontal lock for framed doors (with or without rebate).
Materials: glass-clamp plates in aluminium alloy with epoxy paint; screwwork in stainless steel A2; front plates AISI 304; cover caps, handles and knobs AISI 316; gaskets in PE.
Cylinder: Multipoint euro-profile cylinder; cylinder entry 60 mm.
Latch: Reversible, key-operated (throw 12 mm; 23 mm when key-operated).
Lever: Two key turns, anti-cut treatment, lever projection 20 mm.
Recommended glass thickness: 10 mm.
Certifications: UNE-EN 1935:2002/AC:2004 (Grade 7 / 200,000 cycles); UNE-EN 1670:2007/AC:2008 (Grade 5).
Standard finishes: polished stainless, satin stainless. Options: electrolytic and RAL colours on request.
Series variants / references: examples include 1700, 1701, 1702, 1703, 1704, 1705, 1706, 1707, 1708, 1709 (different latch, handle/knob configurations and framed door with/without rebate).
