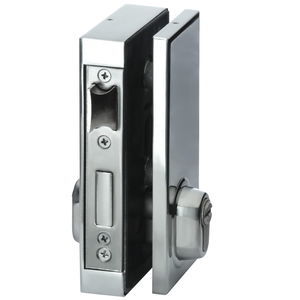

Mechanical lock 1004
for lockermultipointcommercial

Mechanical lock - 1004 - Trivel - for locker / multipoint / commercial

Mechanical lock - 1004 - Trivel - for locker / multipoint / commercial

Mechanical lock - 1004 - Trivel - for locker / multipoint / commercial - image - 2

Mechanical lock - 1004 - Trivel - for locker / multipoint / commercial - image - 3

Mechanical lock - 1004 - Trivel - for locker / multipoint / commercial - image - 4

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Product applications: for locker
Number of locking points: multipoint
Market: commercial, home
Installation: built-in
Material: stainless steel, steel, alloy, polished stainless steel
Finish: satin, polished
Color: black, red, blue, green
Other characteristics: high-security

Description

Latch bolt/deadbolt with cylinder and interior knob 003R Glass clamping plates made of aluminium alloy via injection process and coated with epoxy paint A2 stainless steel screws Front plates in AISI 304 stainless steel Decorative covers in AISI 316 stainless steel Handles and knobs in AISI 316 stainless steel Glass clamping gaskets made of PE material Euro-profile multipoint security cylinder Reversible latch operated by key, 10 mm latch projection Deadbolt with two full key turns and anti-saw protection, 20 mm bolt projection Cylinder entrance: 40 mm Certified under UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified under UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance Finishes: Polished stainless steel – Satin stainless steel Glass thickness: 10 mm Electrolytic finishes RAL colours (/T) Stop for outward-opening lock, for installation with strike plate WITHOUT electric strike (/TE) Stop for outward-opening lock, for installation WITH electric strike (recommended to prevent tampering) Desired stop can be ordered by adding (/T) or (/TE) after the selected lock reference Glass thicknesses up to 17.52 mm
