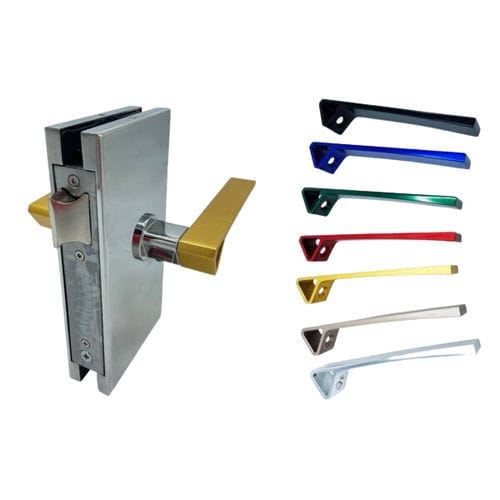

Mechanical lock MIR - CRONO

with handledoormultipoint

Latch handles Glass clamping plates made of aluminium alloy through injection moulding and coated with epoxy paint Stainless steel A2 screws Front plates in stainless steel AISI 304 Decorative covers in stainless steel AISI 316 Handles made of extruded aluminium alloy with anodized finish in various colours, reversible and interchangeable thanks to the adapter design between handle and lock made of stainless steel Glass clamping seals made of PE material Multipoint security euro-profile cylinder Newly designed rectangular cylinder cover that harmonizes the design of the new lock and handle set Reversible latch operated by key, latch throw 10 mm Lever with two turns of the key and anti-cut treatment, lever throw 20 mm Cylinder entry 40 mm If fixed actuators are required on the lock, for pull-handle type use, these will be knobs only Certified by standard UNE-EN 1935:2002/AC:2004, Grade 7/200,000 cycles Certified according to standard UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance M.1 M.1 GP M.1 ATAP M.2 CG Standard lock body finishes: Polished stainless steel – Satin stainless steel Standard handle adapter finish: Polished stainless steel – Satin stainless steel COSMO / CRONO handles available in their range of colours Glass thickness 10 mm Electrolytic finishes RAL colours Glass thickness up to 17.52 mm Polished or Satin Stainless Steel Anodized Polished or Satin Black Anodized Polished or Satin Red Anodized Polished or Satin Blue Anodized Polished or Satin Gold Anodized Polished or Satin Green Anodized
