Mechanical lock 1600/4
with handledoormultipoint

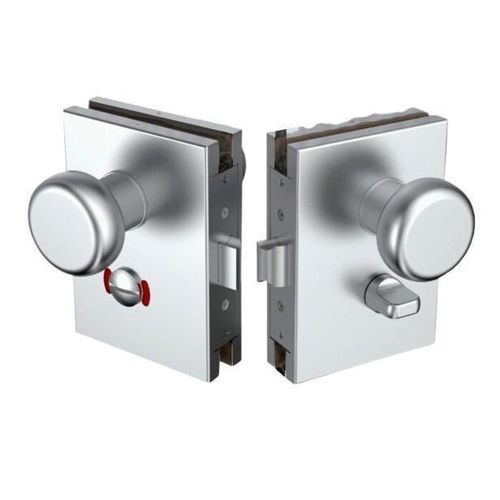

Mechanical lock - 1600/4 - Trivel - with handle / door / multipoint

Mechanical lock - 1600/4 - Trivel - with handle / door / multipoint - image - 2

Mechanical lock - 1600/4 - Trivel - with handle / door / multipoint - image - 3

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: door
Number of locking points: multipoint
Market: commercial
Installation: surface-mounted
Material: stainless steel
Finish: high-gloss
Color: silver-colored
Other characteristics: high-security, corrosion-resistant

Description

Available variants

1600/2 — latch for lever handle 038R and ON-OFF indicator lock
1600/3 — latch for lever handle 039R and ON-OFF indicator lock
1600/4 — latch for knob 001R and ON-OFF indicator lock

General features

Glass clamping plates manufactured from aluminum alloy by injection molding and epoxy-coated
Fasteners in stainless steel A2
Frontplates and decorative covers in stainless steel AISI 316
Handles in stainless steel AISI 304
Lever actuating lug with occupancy indicator (Green = ON / Red = OFF)
Glass clamping gaskets made of cork-rubber material
Reversible latch, latch projection 10 mm
Certified to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles
Certified to UNE-EN 1670:2007/AC:2008, Grade 5 (maximum corrosion resistance)

Standard manufacture

Finishes: Bright stainless — Satin stainless
Glass thickness: 10 mm

Options on request

Electrolytic finishes
RAL colours

Additional technical information

Availability of technical data sheets and installation/use instructions (specific sheets per variant)
Machining templates for glass positioning included

Technical characteristics / specifications

Main materials: aluminum alloy (clamping plates), AISI 316 (frontplates and covers), AISI 304 (handles)
Fasteners: stainless steel A2
Occupancy indicator: actuating lug with colours Green = ON / Red = OFF
Gaskets: cork-rubber for glass clamping
Latch: reversible with 10 mm projection
Recommended glass thickness: 10 mm
Standards and certifications: UNE-EN 1935:2002/AC:2004 (Grade 7 / 200,000 cycles) and UNE-EN 1670:2007/AC:2008 (Grade 5 corrosion resistance)
Standard finishes: bright and satin stainless; on request: electrolytic and RAL colours
