Mechanical lock 1704
with handledoormultipoint

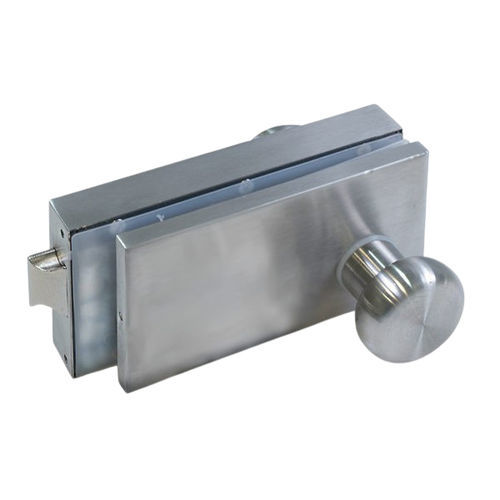

Mechanical lock - 1704 - Trivel - with handle / door / multipoint

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: door
Number of locking points: multipoint
Market: commercial
Installation: surface-mounted
Material: stainless steel
Finish: high-gloss
Color: silver-colored
Other characteristics: high-security

Description

Description

Horizontal lock for framed doors with or without rebate.

GENERAL CHARACTERISTICS

Glass clamping plates made of aluminium alloy by injection moulding and coated with epoxy paint.
Fasteners in stainless steel A2.
Front plates in stainless steel AISI 304.
Decorative covers in stainless steel AISI 316.
Handles and knobs in stainless steel AISI 316.
Glass clamping gaskets made of PE material.
Euro profile multipoint security cylinder.
Reversible latch operated by key; latch throw 12 mm; latch throw when operated by key 23 mm.
Lever with two key turns and anti-cut treatment; lever projection 20 mm.
Cylinder entry 60 mm.
Certified to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles.
Certified to UNE-EN 1670:2007/AC:2008, Grade 5 (maximum corrosion resistance).

STANDARD MANUFACTURE

Finishes: Polished stainless – Satin stainless.
Recommended glass thickness: 10 mm.

OPTIONS ON REQUEST

Electrolytic finishes.
RAL colours.

Technical characteristics / Specifications

Type: Horizontal lock for framed doors (with or without rebate).
Plate material: Injected aluminium alloy with epoxy paint coating.
Fasteners: Stainless steel A2.
Front plates: Stainless steel AISI 304.
Decorative covers: Stainless steel AISI 316.
Handles and knobs: Stainless steel AISI 316.
Clamping gaskets: PE material.
Cylinder: Euro profile multipoint security cylinder (entry 60 mm).
Latch: Reversible; latch throw 12 mm (standard) and 23 mm (key-operated).
Lever: Two key turns with anti-cut treatment; lever projection 20 mm.
Certifications: UNE-EN 1935:2002/AC:2004 (Grade 7 / 200,000 cycles); UNE-EN 1670:2007/AC:2008 (Grade 5 — maximum corrosion resistance).
Recommended glass thickness: 10 mm.
Standard finishes and options on request: Polished stainless, Satin stainless, electrolytic finishes and RAL colours.
