Magnetic lock VMMT23
electromagneticwith handleglass door

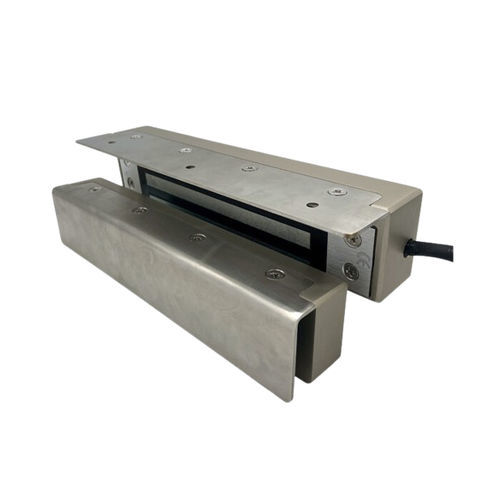

Magnetic lock - VMMT23 - Trivel - electromagnetic / with handle / glass door

Magnetic lock - VMMT23 - Trivel - electromagnetic / with handle / glass door

Magnetic lock - VMMT23 - Trivel - electromagnetic / with handle / glass door - image - 2

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: magnetic, electromagnetic
Opening system: with handle
Product applications: glass door
Number of locking points: multipoint
Market: commercial, home
Installation: built-in
Material: stainless steel
Finish: satin
Color: silver-colored
Other characteristics: high-security, for access control, keyless, anti-panic, wireless, for indoor use

Description

Magnetic suction lock set glass door to frame/ceiling Made of AISI 316L stainless steel and anodized aluminium Magnetic suction lock Holding force 180 kg Voltage 12/24 VDC Consumption (12VDC) 310 mA Consumption (24VDC) 170 mA Reversed operation For 10 mm glass thickness Pressure-mounted on glass (gluing recommended) Electromagnetic compatibility: Directive 2014/30/EU according to standards: EN 60730-1:2016 and EN IEC 60730-2-12:2019 Certified according to UNE-EN 1670:2007/AC:2008) Grade 5, maximum corrosion resistance Satin stainless steel and satin anodized aluminium. 001C Stabilized power supply 220V/12VDC 0.5AMP included. Electrolytic finishes RAL colours Glass thicknesses up to 17.52 mm

Catalogs

No catalogs are available for this product.

See all of Trivel‘s catalogs

Go to the Trivel website for more information
