Mechanical lock 1400
with handleglass doormultipoint

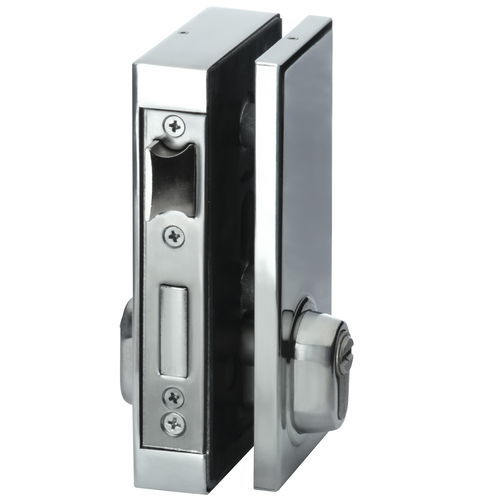

Mechanical lock - 1400 - Trivel - with handle / glass door / multipoint

Mechanical lock - 1400 - Trivel - with handle / glass door / multipoint

Mechanical lock - 1400 - Trivel - with handle / glass door / multipoint - image - 2

Mechanical lock - 1400 - Trivel - with handle / glass door / multipoint - image - 3

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: glass door
Number of locking points: multipoint
Market: commercial, retail, home
Installation: surface-mounted
Material: stainless steel, alloy, polished stainless steel
Finish: satin
Color: silver-colored
Other characteristics: high-security

Description

For doors installed with a rebated frame Pressure plates for glass made of aluminium alloy by injection process and coated with epoxy paint Screws in stainless steel A2 Front plates in stainless steel AISI 304 Decorative covers in stainless steel AISI 316 Handles and knobs in stainless steel AISI 316 Glass clamping gaskets made of PE material Euro profile multipoint security cylinder Reversible latch operated by key, latch throw 10 mm Lever with two turns of the key and anti-cut treatment, lever throw 20 mm Cylinder input 40 mm Certified according to UNE-EN 1935:2002/AC:2004, Grade 7/200,000 cycles Certified according to UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance Finishes: Polished stainless steel – Satin stainless steel Glass thickness 10 mm Electrolytic finishes RAL colours
