Mechanical lock 1702
with handledoormultipoint

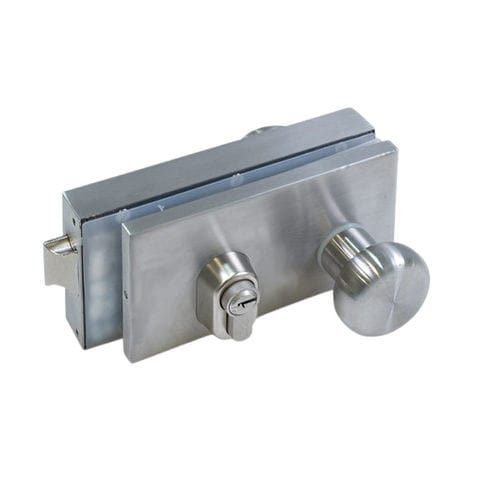

Mechanical lock - 1702 - Trivel - with handle / door / multipoint

Mechanical lock - 1702 - Trivel - with handle / door / multipoint - image - 2

Mechanical lock - 1702 - Trivel - with handle / door / multipoint - image - 3

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: door
Number of locking points: multipoint
Market: commercial
Installation: surface-mounted
Material: stainless steel
Finish: high-gloss
Color: silver-colored
Other characteristics: high-security

Description

Product
JANO – Horizontal lock. Variant: 1702. Latch, euro-profile cylinder and knobs 001R – for rebated or non-rebated framed doors.

GENERAL FEATURES

Horizontal lock for framed doors with or without rebate
Glass clamping plates made of aluminum alloy by injection molding, epoxy-painted
Fasteners in stainless steel A2
Faceplates in stainless steel AISI 304
Cover plates in stainless steel AISI 316
Handles and knobs in stainless steel AISI 316
Glass clamping seals made of PE material
Euro-profile multipoint security cylinder
Reversible latch operated by key; latch throw 12 mm; latch throw when key-operated 23 mm
Lever with two turns of the key and anti-cut treatment, lever throw 20 mm
Cylinder entry 60 mm
Certified to UNE-EN 1935:2002/AC:2004, Grade 7/200,000 cycles
Certified to UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance

STANDARD MANUFACTURE

Finishes: Polished stainless / Satin stainless
Glass thickness: 10 mm

OPTIONS ON REQUEST

Electrolytic finishes
RAL colours

Characteristics / Technical specifications

Main materials: aluminum alloy (clamping plates), stainless steel AISI 304 (faceplates), AISI 316 (cover plates, handles and knobs)
Fasteners: stainless steel A2
Cylinder type: euro-profile multipoint security
Exit dimensions: latch 12 mm (standard) / 23 mm (key-operated)
Lever throw: 20 mm; cylinder entry: 60 mm
Application: framed doors with or without rebate
Standards and durability: UNE-EN 1935:2002/AC:2004 (Grade 7/200,000 cycles), UNE-EN 1670:2007/AC:2008 (Grade 5 corrosion resistance)
Model range: 1700 to 1709 (this record corresponds to model 1702)
