Mechanical lock 1701
with handledoormultipoint

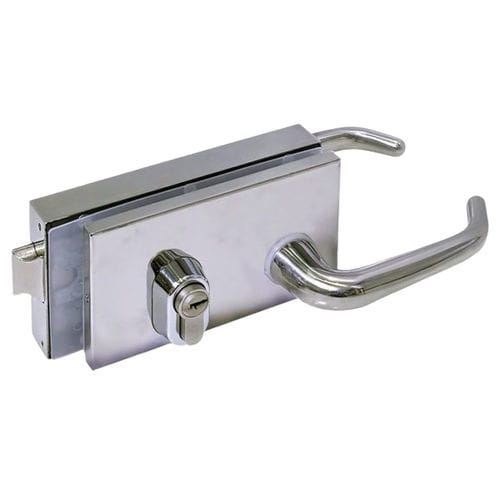

Mechanical lock - 1701 - Trivel - with handle / door / multipoint

Mechanical lock - 1701 - Trivel - with handle / door / multipoint - image - 2

Mechanical lock - 1701 - Trivel - with handle / door / multipoint - image - 3

Add to favorites

Compare this product

Go to the Trivel website for more information

Characteristics

Mechanism: mechanical
Opening system: with handle
Product applications: door
Number of locking points: multipoint
Market: commercial
Installation: surface-mounted
Material: stainless steel
Color: silver-colored
Other characteristics: high-security

Description

Description

Horizontal lock for frame doors with or without rebate.
Glass clamping plates manufactured in die-cast aluminum alloy with epoxy paint coating.
Fasteners in stainless steel A2.
Front plates in stainless steel AISI 304.
Cover caps in stainless steel AISI 316.
Handles and knobs in stainless steel AISI 316.
Glass-clamping gaskets made of PE.
Euro-profile multipoint security cylinder.
Reversible latch operated by key (latch throw 12 mm; key-operated latch throw 23 mm).
Lever with two key turns and anti-cut treatment (lever throw 20 mm).
Cylinder entry 60 mm.
Certified to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles.
Certified to UNE-EN 1670:2007/AC:2008, Grade 5 (maximum corrosion resistance).

Standard manufacturing

Finishes: Polished stainless steel – Satin stainless steel.
Glass thickness: 10 mm.

Options on request

Electrolytic finishes.
Custom RAL colours.

References / Available variants

1700 – Cylinder latch - rebated frame.
1701 – Cylinder latch and handles - rebated frame.
1702 – Cylinder latch and knobs 001R – rebated frame.
1702/1 – Cylinder latch and fixed knobs 002R – rebated frame.
1703 – Latch and handles - rebated frame.
1704 – Latch and knobs 001R – rebated frame.
1705 – Cylinder latch - non-rebated frame.
1706 – Cylinder latch and handles – non-rebated frame.
1707 – Cylinder latch and fixed knobs 002R – non-rebated frame.
1708 – Latch and handles – non-rebated frame.
1709 – Latch and knobs 001R – non-rebated frame.

Characteristics / Technical specifications

Type: Horizontal lock for frame doors (with or without rebate).
Main materials: glass-clamping plates in die-cast aluminum alloy with epoxy paint; front plates AISI 304; cover caps, handles and knobs in AISI 316; fasteners A2; gaskets PE.
Cylinder: Euro-profile multipoint security cylinder; cylinder entry 60 mm.
Latch: reversible and key-operated; latch throws 12 mm (standard) and 23 mm (key-operated).
Lever: two key turns, anti-cut treatment; lever throw 20 mm.
Compatible glass thickness: 10 mm.
Standard finishes: polished and satin stainless steel; options on request: electrolytic finishes and custom RAL colours.
Standards and certifications: UNE-EN 1935:2002/AC:2004 (Grade 7 / 200,000 cycles); UNE-EN 1670:2007/AC:2008 (Grade 5, maximum corrosion resistance).
