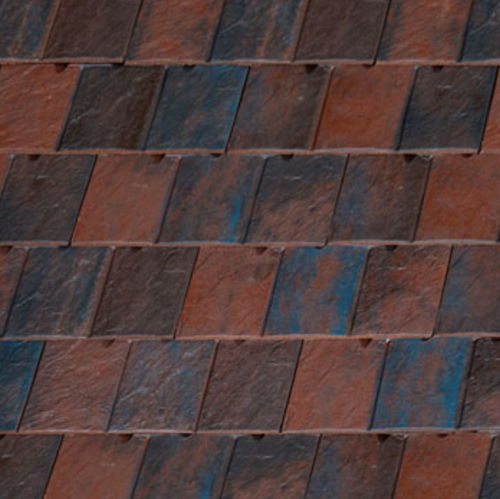

Flat roof tile H-SELECTION VISUM3

ceramicsmallred

Product description
Exclusivity and design in a single piece, producing the visual effect of three tiles. Distinctive format and range of colours with a refined finish. The Visum3 tile is installed using broken bond (also referred to as CROSS BOND).

Data sheet
Visum3 Roof tile
A 471 mm / 11"
B 280 mm / 18.54"
C 35 mm / 1.38"
Pieces / m2 - P./sq.: 11.5 / 106.7
Weight piece: 3.55 kg / 7.83 lbs
Longitudinal fit: 187 mm (+4 mm ; -10 mm) / 7.36” (+0.16; -0.39”)
Transversal fit: 435 mm (± 1 mm) / 17.12” (± 0.04”)
Units per pallet: 216 / 288
Weight per pallet: 767 kg (1,691 lbs) / 1,022 kg (2,253 lbs)
Laying: Broken bond (CROSS BOND)
*The tile dimensions indicated in this chart allow a tolerance of approximately +/-2%
**Theoretical value: this should be re-calculated on site with the tiles that are to be used.

Features

• HIGH DEFINITION ON EACH PIECE — Individual firing of each tile using H support for excellent flatness without contact points.
• EXCELLENT FLATNESS — Gypsum mould manufacturing delivers finer texture and precise definition on each piece.
• LOW ABSORPTION — Improved resistance to frost and mould formation.
• LIFETIME WARRANTY — 100 years warranty covering product quality and manufacturing reliability.

Color range

• TWPK SLATE
• TWGIK GRIS IDELLA
• TWRRK RUSTIC RED
• TWRUK RUSSET

Notes on colour variation
Colour variations within a single production batch, produced for aesthetic reasons, are permissible and affect the entire batch. For single-colour tiles, variations due to the ceramic process are accepted. It is recommended not to mix tiles from different batches on the same roof section.

Technical specifications

• Model / Range: Visum3 (H-Selection)
• Dimensions (A x B x C): 471 mm x 280 mm x 35 mm (11" x 18.54" x 1.38")
• Pieces per m2: 11.5 (106.7 per sq.)
• Weight per piece: 3.55 kg (7.83 lbs)
• Longitudinal fit: 187 mm (+4 mm ; -10 mm) / 7.36” (+0.16; -0.39”)
• Transversal fit: 435 mm (± 1 mm) / 17.12” (± 0.04”)
• Units per pallet: 216 / 288
• Weight per pallet: 767 kg or 1,022 kg
• Laying method: Broken bond (CROSS BOND)
• Dimensional tolerance: approx. ±2%
• Theoretical values (e.g. fits): to be re-calculated on site with the tiles to be used
