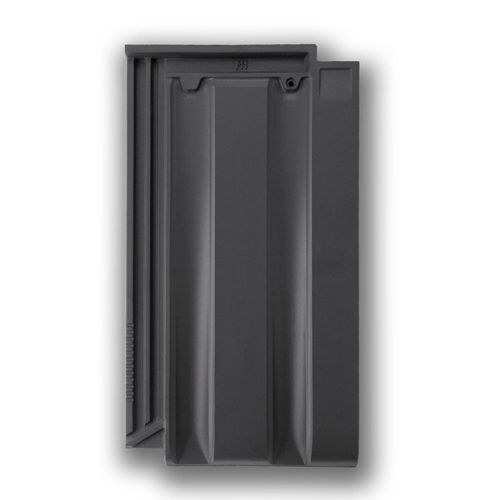

Rectangular roof tile H-SELECTION INNOVA

claysmallred

Product summary
Designed for architectural roofing, the H-Selection Innova Slate roof tile offers a refined surface texture and aesthetic compatibility for exclusive laying or combined installation with Vienna tiles, enabling expressive roof finishes for design-focused projects.

Key features

• EXCELLENT FLATNESS — Individual firing of each tile on H-support ensures flat surfaces without contact marks.
• HIGH DEFINITION ON EACH PIECE — Gypsum-mould fabrication delivers fine texture and precise edges.
• LOW ABSORPTION — Improved resistance to frost and mould formation.
• LIFETIME WARRANTY — 100-year warranty reflecting the consistency of the manufacturing process.

Data sheet
Innova roof tile
Dimensions* — A: 460 mm / 18.11"; B: 255 mm / 10.04"; C: 30 mm / 1.18"
Pieces/m2 / sq — 11.5 / 105
Weight per piece — 3,400 g / 7.5 lbs
Longitudinal fit** — 396 mm (+5 mm / -75 mm) / 15.6" (+0.19"; -2.95")
Transversal fit** — 214 mm (±1 mm) / 8.42" (±0.04")
Units per pallet — 216 / 288
Weight per pallet — 734 kg / 1,618.2 lbs (216 pieces); 979 kg / 1,757.1 lbs (288 pieces)
Laying — Straight / broken bond
*Tile dimensions admit a tolerance of approximately ±2%
**Theoretical value: recalculate on site with the tiles to be used.

Color range

• TNRK RED
• TNMK BROWN
• TNPK SLATE
• TNYK GALAXY
• TNRRK RUSTIC RED
• TNXK GREY

Notes on color and batches
Variations in tone within a production batch are permissible for aesthetic reasons. For single-color tiles, natural variations from the ceramic process are accepted. It is recommended not to mix tiles from different batches on the same roof area to ensure a uniform finish.

Technical specifications

• Model: Innova (H-Selection)
• Dimensions (A × B × C): 460 mm × 255 mm × 30 mm
• Pieces per m²: 11.5 (approx.)
• Weight per piece: 3,400 g
• Longitudinal fit (theoretical): 396 mm (+5 / -75 mm)
• Transversal fit: 214 mm (±1 mm)
• Units per pallet: 216 or 288
• Weight per pallet: 734 kg (216 pcs) or 979 kg (288 pcs)
• Laying options: Straight or broken bond
• Properties: excellent flatness, high surface definition, low water absorption, lifetime warranty
