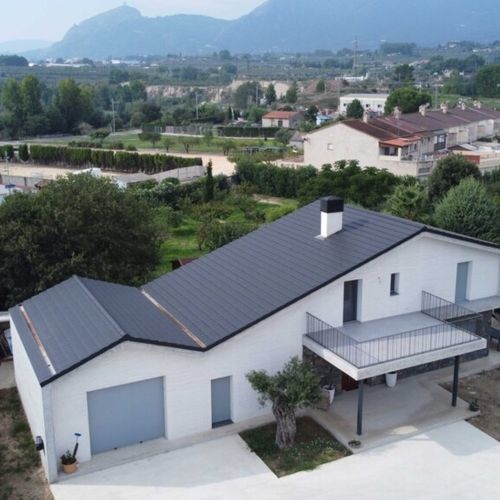

Rectangular roof tile H-SELECTION PLANUM

ceramicsmallred

Overview
Traditional roofing aesthetics combined with a contemporary rectangular format. Planum is specified for its large format, controlled weight per piece and dimensional stability. The recommended laying method is broken bond (cross bond).

Data sheet
Planum roof tile
Dimensions: A 441 mm / 17.36 in | B 278 mm / 10.94 in | C 32 mm / 1.26 in
Pieces per m2: 11 / 106 per sq.
Weight per piece: 3.5 kg / 7.71 lbs
Longitudinal fit: 370 mm (+6 / -44 mm) / 14.57 in (+0.24 in; -1.73 in)
Transversal fit: 237 mm / 9.33 in
Units per pallet: 240 / 320
Weight per pallet: 840 kg / 1120 kg
Laying: Broken bond (cross bond)
*Tile dimensions admit a tolerance of approximately +/-2% **Theoretical value: recalculate on site with the tiles to be used.

Features

• Flatness: individual curing with H support ensures uniform planarity without contact marks.
• High definition: gypsum-mould manufacturing provides a fine surface texture and precise edges.
• Low water absorption: improved resistance to frost and mould formation.
• Warranty: declared 100-year lifetime warranty covering manufacturing defects.

Color range

• TIRK RED
• TIMK BROWN
• TIYK GALAXY
• TIXK GREY
• TIBSK BLACKSTONE
• TIJK JASPEE RED
• TIRRK RUSTIC RED
• TICEK PEPPER
• TIPK SLATE

Notes
Color variations within a batch produced for aesthetic reasons or inherent to the ceramic process are permissible. It is recommended not to mix tiles from different production dates on the same roof slope; when possible blend pallets from the same lot to obtain a uniform finish.

Technical specifications

• Model family: Planum (H-Selection)
• Dimensions (A x B x C): 441 mm x 278 mm x 32 mm
• Pieces per m2: 11
• Weight per piece: 3.5 kg
• Longitudinal fit: 370 mm (+6 / -44 mm)
• Transversal fit: 237 mm
• Units per pallet: 240 / 320
• Weight per pallet: 840 kg / 1120 kg
• Laying method: Broken bond (cross bond)
• Low water absorption: improved resistance to frost and mould
• Manufacturing: gypsum moulds for fine texture and high definition
• Warranty: 100 years (declared)
