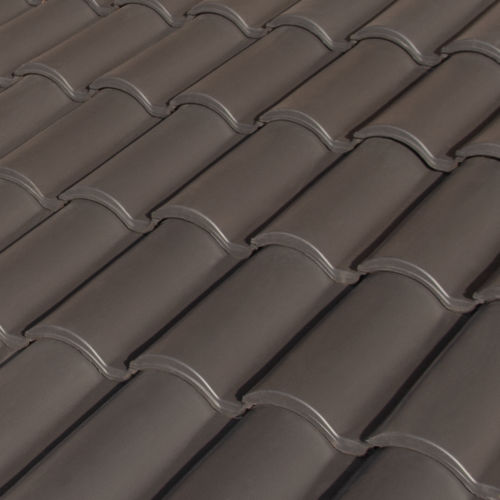

Barrel roof tile H-SELECTION SELECTUM

claysmallorange

Product overview
Selectum is a traditional roof tile manufactured to klinker quality. It integrates the FlexiLock installation system for easier fitting and adaptable laying. The number of tiles per m2 varies between 11 and 14.

Key features

• Individual curing and flatness: Each tile is cured on an H support to ensure excellent flatness without contact marks.
• High-definition finish: Gypsum mould manufacturing provides precise definition and a fine texture.
• Low water absorption: Increased resistance to frost and mould.
• FlexiLock installation: Variable pureaux allow on-site adjustment and simplified laying.
• Warranty: 100 years declared by the manufacturer.

Technical data
Selectum roof tile
A 468 mm / 18.4"
B 280 mm / 11"
C 75 mm / 3"
Pieces/m2: 11 - 14
Weight per piece: 3,500 gr / 7.71 lbs
Longitudinal fit**: 348 - 383 mm / 13.7 - 15.07"
Transversal fit**: 206 - 231 mm / 8.1 - 9.09"
Units per pallet: 240 / 320
Weight per pallet: 840 kg / 1,120 kg (1851.88 lbs / 2469.17 lbs)
Laying: Straight bond
*Dimensions allow a tolerance of approximately +/-2%
**Theoretical value; recalculation on site with the tiles to be used is recommended.

Colour range

• TSPRK PROVENCE
• TSPK SLATE
• TSRRK RUSTIC RED
• TSEC COGNAC
• TSEZ LIGHT BLUE
• TSEA DARK BLUE
• TSEV LIGHT GREEN
• TSEO DARK GREEN
• TSECR RUSTIC COGNAC
• TSEG CARMINE
• TSEN BLACK
• TSRK RED
• TSMK BROWN

Notes on colour
Colour variations within a production batch are permissible for aesthetic reasons. For single-colour tiles, small variations due to the ceramic process are accepted. It is recommended not to mix tiles from different production dates on the same roof area; when possible, use tiles from the same batch for a uniform finish.

Characteristics / technical specifications

• Model: Selectum (H-Selection range)
• Dimensions (A×B×C): 468 × 280 × 75 mm (tolerance ±2%)
• Pieces per m2: 11 - 14
• Weight per piece: 3,500 gr
• Longitudinal fit: 348 - 383 mm (theoretical)
• Transversal fit: 206 - 231 mm (theoretical)
• Units per pallet: 240 / 320
• Weight per pallet: 840 kg / 1,120 kg
• Laying: Straight bond
• Installation system: FlexiLock
• Material: Klinker-quality terracotta (low absorption)
• Warranty: 100 years (declared by manufacturer)
