Flat roof tile H-SELECTION VISUM3

ceramicsmallred

Product overview

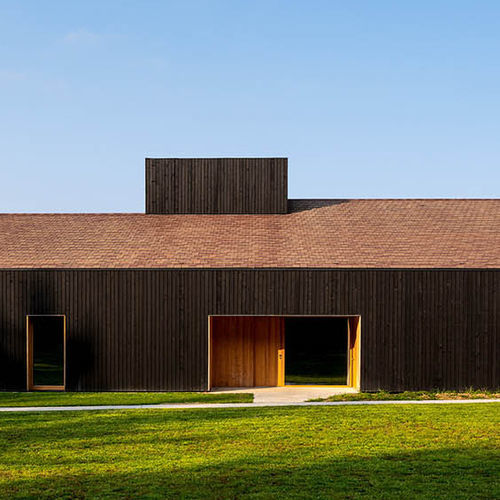

The Visum3 roof tile reproduces the visual effect of three tiles with a single piece. Designed for modern architectural applications, the tile is installed using a broken bond (also referred to as CROSS BOND).

Data sheet
Visum3 Roof tile
Dimensions*
A: 471 mm / 11"
B: 280 mm / 18.54"
C: 35 mm / 1.38"
Pieces / m2 - P./sq.: 11.5 / 106.7
Weight per piece: 3.55 kg / 7.83 lbs
Longitudinal fit**: 187 mm (+4 mm ; -10 mm) / 7.36” (+0.16; -0.39”)
Transversal fit**: 435 mm (± 1 mm) / 17.12” (± 0.04”)
Units per pallet: 216 / 288
Weight per pallet: 767 kg (1,691 lbs) / 1,022 kg (2,253 lbs)
Laying: Broken bond (CROSS BOND)
*The tile dimensions indicated in this chart allow a tolerance of approximately +/-2%
**Theoretical value: recalculate on site with the tiles to be used.

Features

• INDIVIDUAL CURING: Each tile is cured individually on an H-support to minimise contact marks.
• HIGH FLATNESS: Manufactured with gypsum moulds to ensure consistent flatness and fine surface texture.
• LOW WATER ABSORPTION: Improved resistance to frost and mould formation.
• 100-YEAR WARRANTY: Long-term warranty providing traceable product reliability.

Color range
Design-oriented colour variations are produced for aesthetic finish. Colour differences within a single production batch are permissible for aesthetic reasons. For single-colour tiles, natural variations due to the ceramic process are expected. Do not mix tiles from different batches on the same roof section.

Characteristics / Technical specifications

• Model / Range: Visum3 (H-Selection)
• Dimensions A × B × C: 471 mm × 280 mm × 35 mm
• Pieces per m²: 11.5 (106.7 per sq.)
• Weight per piece: 3.55 kg / 7.83 lbs
• Longitudinal fit: 187 mm (+4 mm / -10 mm)
• Transversal fit: 435 mm (± 1 mm)
• Units per pallet: 216 / 288
• Weight per pallet: 767 kg / 1,022 kg (depending on packing)
• Laying system: Broken bond (CROSS BOND)
• Dimensional tolerance: ±2%
